You’ve dreamed of owning and building your own aircraft:
The new ZODIAC
CH 650 is the answer to your dreams - offering you superior performance, capabilities,
versatility, and comfort, and, best of all, the ZODIAC is an affordable all-metal kit
aircraft you can build yourself with just basic skills and tools.
Zenith Aircraft Company is a pioneer in the kit
aircraft manufacturing industry, with more than twenty years experience designing and
building quality aircraft kits for both first-time builders and demanding sport pilots.
With this valuable experience, Zenith Aircraft Company provides builders with
award-winning designs and kits, reducing your risks in purchasing a kit aircraft, and
assuring the builder of ongoing and direct factory service and support.
|
 |
The high quality of
the ZODIAC CH 650 design and kit assures you that this is
one project you’ll be proud to own
and fly for many years. |
 |
|
Building your own aircraft is going to be one of the
most challenging and rewarding undertakings you’ll ever accomplish: imagine,
you’ll be enjoying the thrills of flying an aircraft that you’ve built yourself!
Few people get to experience the sensation and freedom of flying. Even fewer are also
rewarded by flying an airplane that they’ve built themselves. The ZODIAC will help
you realize your dreams like no other kit aircraft! |
|
Zenith Aircraft Company has made it easy for you to get in the
pilot's seat of your own ZODIAC. Start building from:
|
PRICE LIST SUMMARY
| ZODIAC
CH 650: DRAWINGS
& MANUAL |
|
New
updated CAD Drawings and Photo Assembly Manuals.
Detailed blueprints of the
complete airframe and components and basic construction manual, supplied with an aircraft
serial number: All you need to ‘scratch-build’ the ZODIAC, or to preview and
study the design before buying the kit. Included with the complete airframe kit.
The Assembly Manuals are supplied on CD-ROM, with high-resolution Photo Assembly
Guides.
Click here for additional
information about the Drawings.
Add $15.00 for overseas Air Mail shipping.
Existing Zodiac builders
may qualify to
upgrade their drawings to the new Zodiac CH 650. |
|
ZODIAC CH 650 Drawings & Manual: |
US$
495.00 |
 |
|
| ZODIAC
CH 650: COMPLETE KIT: Airframe Kit + Finishing Kit |
|
The
ZODIAC CH 650 airframe kit comes with
all kit parts to build the airframe: The kit includes the
factory riveted wing spars, pre-formed sheet-metal parts (ribs, skins, etc.),
factory-welded parts, standard fuel tanks, controls, and
hardware required for assembly of the airfxrame. The
Drawings and Manual are included with the airframe kit.
The standard ZODIAC CH 650 kit
includes many precision CNC
pre-cut and pre-drilled skins and components.
The Finishing Kit includes the items to complete the
aircraft, including the spring gear, wheels with hydraulic
disk brakes, the new formed bubble canopy, seat belts,
electric elevator trim and electric flap actuator, finishing
hardware, and more.
Not included
in the kit: powerplant and instruments packages, paint, and upholstery.
Crating and shipping charges are extra.
Click here for a summary
of kit features and standard equipment. |
| ZODIAC CH 650 Airframe Kit: |
US$
14,275.00 |
|
| ZODIAC CH 650
Finishing Kit: |
US$ 4,225.00 |
|
|
|
ZODIAC CH 650 COMPONENT KITS |
|
| You may choose to purchase
sections of the complete kit to ‘buy-as-you-build’ (instead of ordering the
complete airframe kit as a single package). The Drawings and Manuals must be purchased
separately. Any individual airframe part or component is also available. |
| COMPONENT
KITS |
ZODIAC CH 650 |
WINGS &
AILERONS/FLAPS KIT*
Includes the complete wing sections. |
$5,225.00
|
|
TAIL KIT**
Includes electric elevator trim tab kit.
Horizontal tail skins are now supplied factory
pre-drilled. |
1,750.00 |
|
|
FUSELAGE KIT |
5,275.00
|
|
CONTROLS KIT
Includes electric flap actuator |
1,065.00 |
|
| FUEL SYSTEM
KIT (order with the wing kit) |
1,375.00 |
|
|
|
ZODIAC CH 650 KIT OPTIONS |
|
| Thanks to the long list of STANDARD equipment included in the airframe kit, there are few additional options needed or recommended. Order the following
options when ordering the kit or component kit to install when building the aircraft, unless specified as a retrofit. |
NAV / STROBE LIGHTING
KIT
Aeroflash-Signal: Two wingtip combination navigation / strobe lights (for
mounting on wing tips). Lighting Kit includes a white tail light
assembly for the rudder.
Order with the wing kit.
Click here for details |
$525.00 |
|

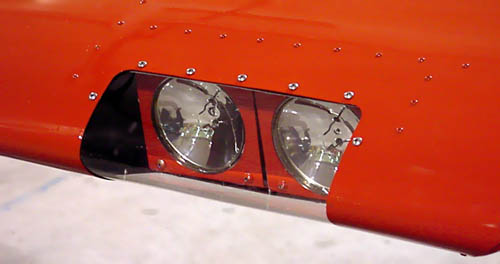

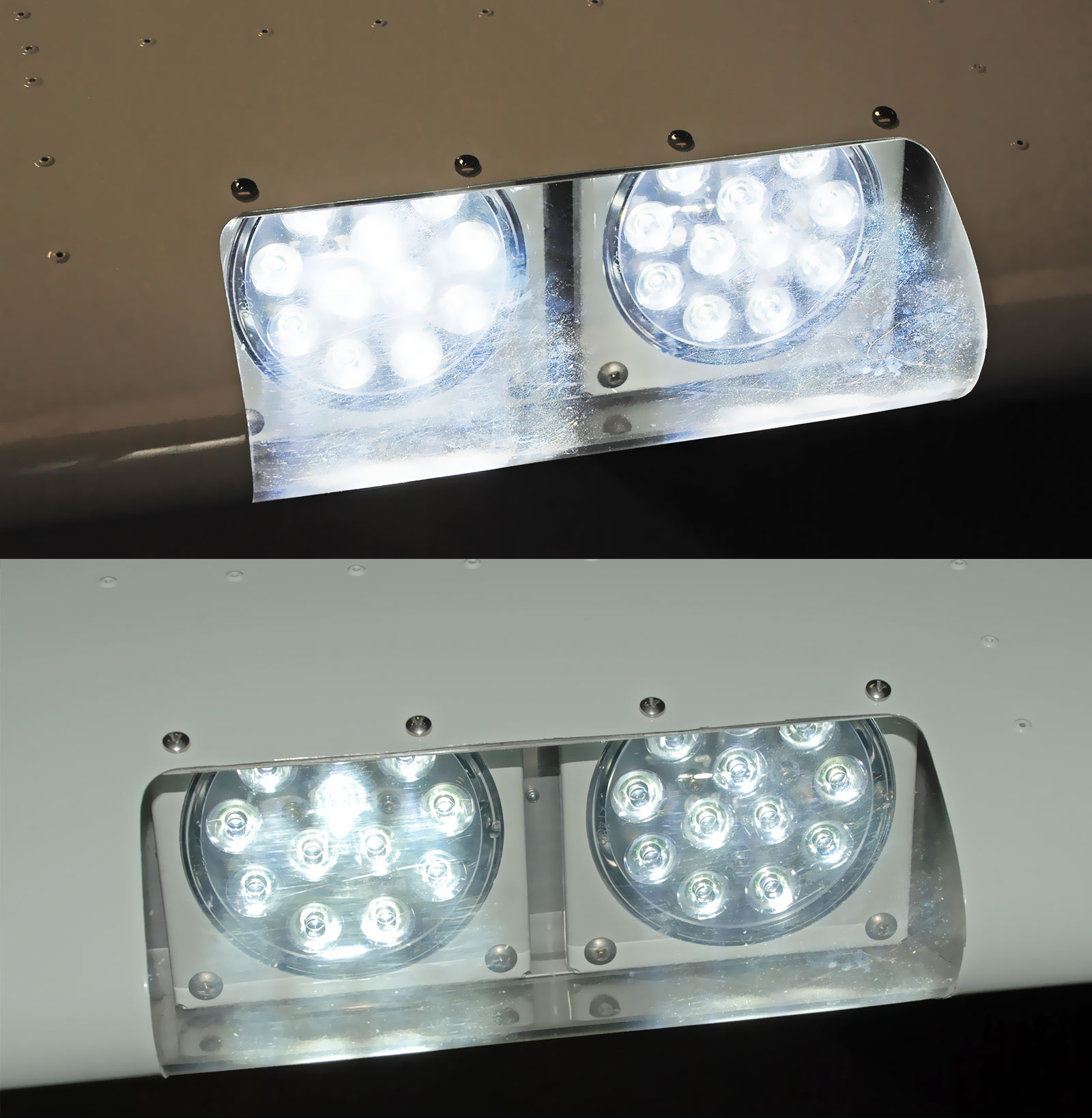

LANDING
LIGHT KIT
Flush-mounted in the wing leading edge. Dual lights.
Click here for a photo. Order
with the wing kit. |
$240.00 |
|
UPHOLSTERY KIT
The Upholstery Kit is supplied ready-to-install. The kit
includes the two seats (bottom and back), four side panels,
and the center-console "boot" for the center stick.
Available in GREY or TAN.
Click here for a
details. (Availability is limited). |
$985.00 |
|
LONG RANGE FUEL TANKS
Add range and endurance to the Zodiac CH 650 with new
larger wing tanks (15 US gal. each). Price is the upgrade cost
for the larger tanks.
(included with the new Quick-Build Kit)
|
$490.00 |
|
DUAL CONTROL STICKS OPTION
This new option
replaces the standard "Y" center stick with dual control
sticks.
Click here for details |
$485.00 |
|
AILERON
TRIM TAB KIT
Recessed tab located in the left aileron. Electric motor
actuation, with push-button control and position indicator.
Click here for
details. Photo.
Order
with the wing kit. |
$330.00 |
|
WING
BAGGAGE LOCKER KIT
Increase baggage space with dual wing baggage
lockers. Measures approx. 19" x 16" x 9" tall.
Click here for
details. Order
with the wing kit. |
$140.00 |
|
WHEEL FAIRINGS KIT
New thinner fiberglass wheel fairings increase
aerodynamics, and give the ZODIAC CH 650 a sleeker look. (For tricycle gear configuration, 5.00x5
wheels). Retrofit. Click here for
details.
|
$450.00 |
|
TAIL-WHEEL GEAR CONFIGURATION
For tail-wheel buffs, the tail-dragger gear option replaces the standard tricycle gear.
The tail-dragger gear option replaces the standard tricycle gear, and comes with 6.00 x 6 wheel upgrade.
Detailed blueprints available separately for tail-wheel gear: $45.00
Click here for details. |
$380.00 |
|
KIT
ASSEMBLY TOOLS
Purchase individual tools from our Online Kit Store (such as drill
bits or Cleco temporary fasteners) or the Complete Took Kit in one
box. |
|
|
| CRATING, HANDLING and
SHIPPING |
|
Kit prices
are F.O.B. Factory and do not include
any crating, handling or shipping costs. The following crating and handling charges
apply for kit and component kit orders. Due to the size and weight of the kits, all kit
orders are usually shipped by surface freight (truck). All shipping and
shipper related charges are collect
(F.O.B. Factory). Call Zenith Aircraft Company for a shipping quote or additional details.
There are no crating charges for factory pick-ups: click
here for details.
- Click
here for shipping details and to obtain a shipping quote.
|
Crating
- Domestic (USA and Canada):
Airframe Kit:
One Box, approx. 12.75' x 4' x 2', 750 lbs.
Finishing Kit:
One Box, approx. 6' x 4' x 4', 375 lbs. |
$455.00
350.00 |
|
Crating
- International:
Airframe Kit:
One Box, approx. 12.75' x 4' x 2', 750 lbs.
One Box, approx. 3.85 m. x 1.2 m. x .6 m., 340 kg.
Finishing Kit:
One Box, approx. 6' x 4' x 4', 375 lbs.
One Box, approx. 1.8 m x 1.2 m. x 1.2 m., 175 kg. |
$495.00
380.00 |
|
| Component Kits
Crating Charge: |
| -
Crating: WINGS KIT |
245.00 |
|
| -
Crating: TAIL KIT |
135.00 |
|
| -
Crating: FUSELAGE KIT |
250.00 |
|
| -
Crating: GEARS & WHEELS
KIT |
120.00 |
|
|
|
| * |
Fuel System Kit required to complete the
wings. |
| ** |
The
cost of the rudder starter kit is deductible off the cost
of the tail kit (or the complete kit), if previously
purchased. |
|
Download
and Print: PDF documents require the free Acrobat Reader
to view.
Additional Information:
|
Prices in U.S. funds. All prices, equipment
and availability subject to change without prior notice. Prices
do not include crating or shipping charges (FOB Factory). Update:
09 September, 2008
|
|
