The affordable recreational kit airplane for the sport pilot: Enjoy leisure flights, with exceptional unrestricted visibility... operate from grass strips... make round trips of several hundred miles in a single day... Take your partner for a local pleasure flight, or to a far-off destination...



The NEW Sport Pilot Ready Kit Plane from Zenith Aircraft Company!

The new CH 650 for Sport Pilots, with UL Power engine

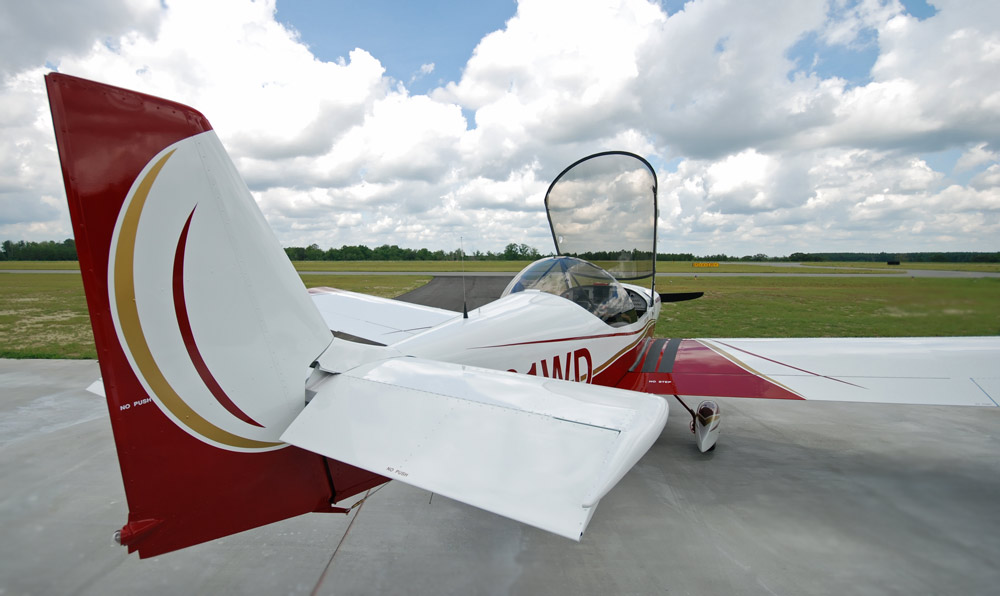

The Zodiac CH 650: New and updated features with modern new styling

The ZODIAC CH 650 is a second generation light sport aircraft, developed specifically for Sport Pilots.  It is the latest model in the Zodiac line of aircraft from aeronautical engineer Chris Heintz, first introduced in 1984.  This newest model offers new and updated features including modern new styling with a larger cabin area.  Some of the Zodiac's features include:

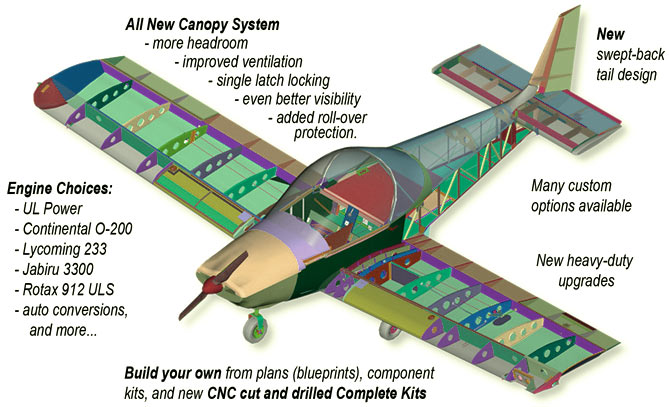

Zodiac CH 650 feaures
Flight Test Report:  Steve Flattum flight tests the Zodiac and reports:
The CH 601 XL / CH 650 family of airplanes are a delight to fly. Simple and easy to fly with a great view and they are very comfortable for long flights. The airplane is very strong and it is backed by a company that has been around for a very long time.”
Read the report
Zodiac CH 650 custom instrument panel

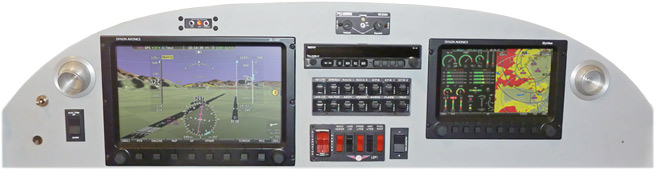

Custom instrument panel with dual Dynon SkyView multifunction displays
“...a playful, delightful airplane with side-by-side seating and a gorgeous bubble canopy. Handling is great, stability is pleasant, and the kit is very straight forward.
Highly recommended.”


Based on the Zodiac CH 601 XL model introduced in 2001, the new ZODIAC CH 650 has been developed specifically to meet the FAA's Sport Pilot / Light-Sport Aircraft category, and offers maximum performance and capability possible under the new FAA category.  With new and updated features and modern styling, the Zodiac CH 650 replaces the Zodiac XL model.

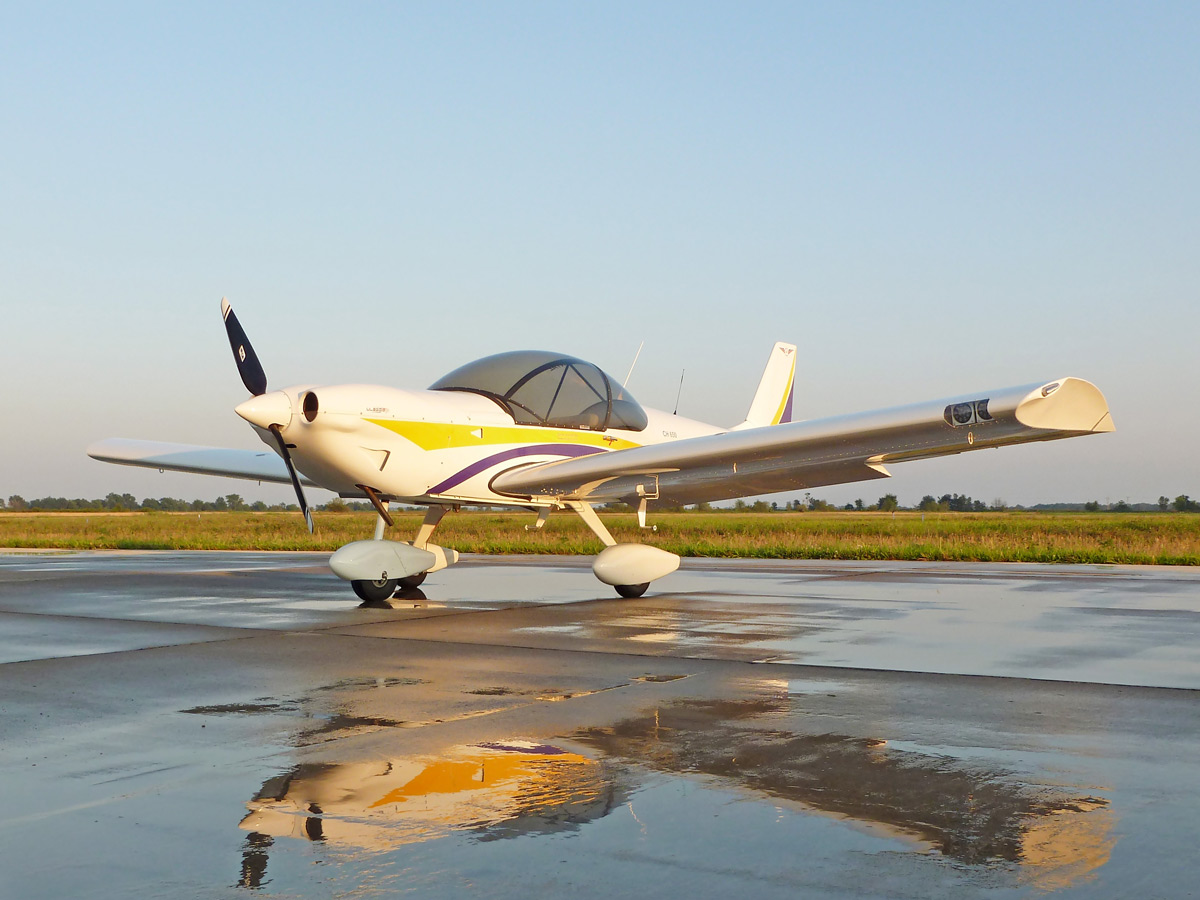

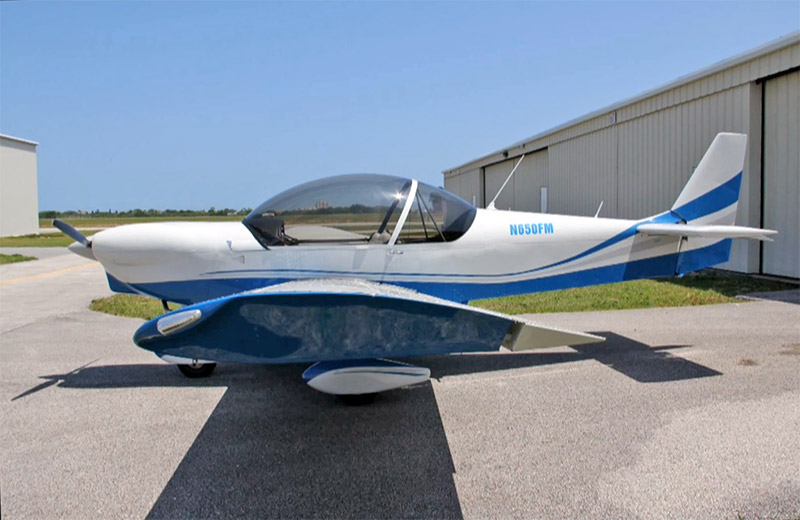

Zodiac CH 650 LSA, powered by the 100-hp Continental O-200 engine:
New Zodiac CH 650 styling  Zodiac CH 650  Custom panel for instrument flight  Zodiac cabin
Zodiac CH 650 Zodiac CH 650 Zodiac CH 650

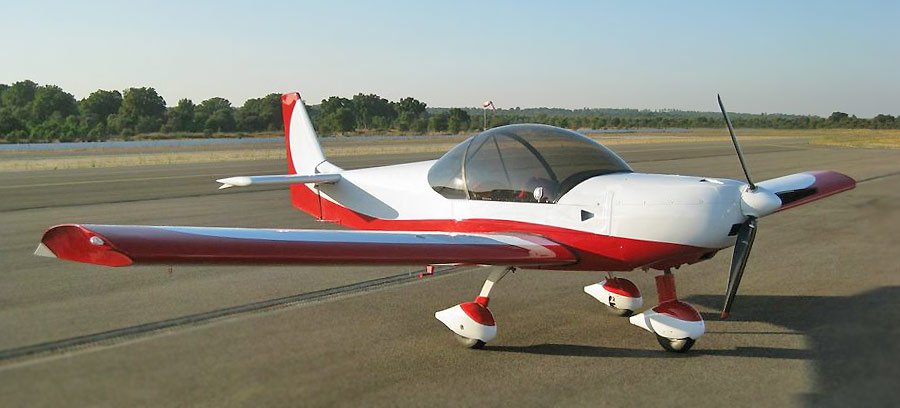

The lighter European Zodiac CH 650 powered by the 100-hp Rotax 912 ULS engine:  [ More Photos ]
Zodiac CH 650 Trying out the Zodiac CH 650 out for size... Zodiac CH 650 E

New aircraft models, like the Zodiac CH 650 and the new STOL CH 750, keep Zenith Aircraft Company at the forefront of the light aircraft industry.  This newest model introduces refinements that compete directly with European imports in the Light Sport (LSA) marketplace, while still offering an exceptional value and choices, allowing builders to construct the Zodiac CH 650 from complete kits, component kits, or even from plans-only, and offering kit builders a wide selection of engine choices to power their aircraft.

CH 650 over Lake Tahoe

The October 2008 issue of EAA Sport Pilot & Light Sport Aircraft magazine reported the following:

The Chris Heintz-designed CH 600 Zodiac spawned a series of designs, each of them an improvement over the earlier iteration, and each became easier to build and more versatile in the air.  The latest models, the CH 650 LS AND LSi, introduced at AirVenture 2008, combine the best of a European-built CH 601 XL sold as a ready-to-fly aircraft, the AMD CH 601 XL sold as an S-LSA, and the Zenith Aircraft Company's amateur built CH 601 XL kit.
The CH  650 is now offered to markets worldwide, with detail changes as needed to comply with governmental regulations. Eventually, the 601 XL will be phased out. The 650 is available as plans (with CAD drawings and assembly manuals), a complete kit (or a series of sub kits) from Zenith Aircraft, Mexico, Missouri, (www.zenithair.com), or as a ready-to-fly S-LSA from Aircraft Design Manufacturing & Design (AMD)  (www.NewPlane.com) of Eastman Georgia.
The CH 650 LS's improvements include a more-convenient hinged clamshell bubble canopy, with dual tube 4130 roll-over protection. The new canopy keeps the traditional look of the Zodiac alive while adding headroom.  (The new roll-over protection and redesigned canopy latching system are also available from Zenith Aircraft as an upgrade kit for existing Zodiac Owners.)
In deference to the CH 650 LS's anticipated role as a primary trainer, its landing gear is tougher and sports standard aviation 500-by-5 wheels and brakes. The gear system is bigger, making the aircraft taller, and the AMD main gear spring is gun-drilled, for cleaner, more protected brake line routing.
The rudder was redesigned and looks sleeker. The European wing angle is now standard on the 650 LS, with the trailing edge of the wing tilted down about 2 inches. Extra aluminum braces have been added to the fuselage sides and wings. The interior sports carpeting, and parts familiar to other Heintz-designed airplanes include the rudder pedals, the cowl, the nose gear strut, and firewall, all similar to the larger CH 640, CH 801, AND CH 2000.
Much work was done to the controls, which are now more balanced for better feel. "The 650 LS's airframe structure and flying characteristics are now more like an FAR 23 type aircraft," said AMD Sales Director John Degonia. "Flying schools and pilots who were looking at buying an FAR 23 aircraft have now committed to the 650."
The IFR airframe of the 650 LSi is based on what was required to certify the Alarus CH 2000 to FAR 23 Certification.   The 650 LS is powered by a TCM (Continental) O-200 with Sensenich fixed-pitch prop. Performance and safety options include a BRS all-aircraft parachute system, AmSafe airbag-seat belts, full electric gyro instruments, and wheelpants.
In the experimental kit version, the CH 650's firewall-forward will accommodate a Jabiru 3300, Lycoming O-235 or -233, or Rotax four-cylinder powerplants as alternatives to the S-LSA version's TCM O-200.
With the Continental O-200 engine, the AMD 650 LS carries 30 gallons of fuel and has a useful load of 550 pounds. (With the Jabiru 3300, the useful load is 625 pounds, leaving a generous 481 pounds with full 24 gallon tanks.)
Panel Options run the gamut from basic VFR to a Dynon EFIS, TruTrak one- or two-axis  autopilots, and many Garmin options, including a 430 system. The AMD Zodiac 650 on display at AirVenture 2008 was equipped with the new EFD1000 Pro primary flight display system from Aspen Avionics and a WAAS-certified GNS 530W GPS/nav/comm by Garmin. Price of the factory-built 650 is just under $100,000.

From EAA Sport Pilot & Light Sport Aircraft magazine, October 2008

Note:  We are currently updating our website to reflect the new ZODIAC CH 650.  Note that most of the information contained on the Zodiac XL design is the same as that for the newer CH 650 model.

Zodiac CH 650

Simple and quick to build easy and fun to fly!

The new ZODIAC CH 650 design offers superior performance and capabilities, comfortable side-by-side seating, affordable costs, and best of all, the ZODIAC is available as a durable all-metal kit that you can quickly build yourself - with just basic skills and  tools.

CH 650 Kit

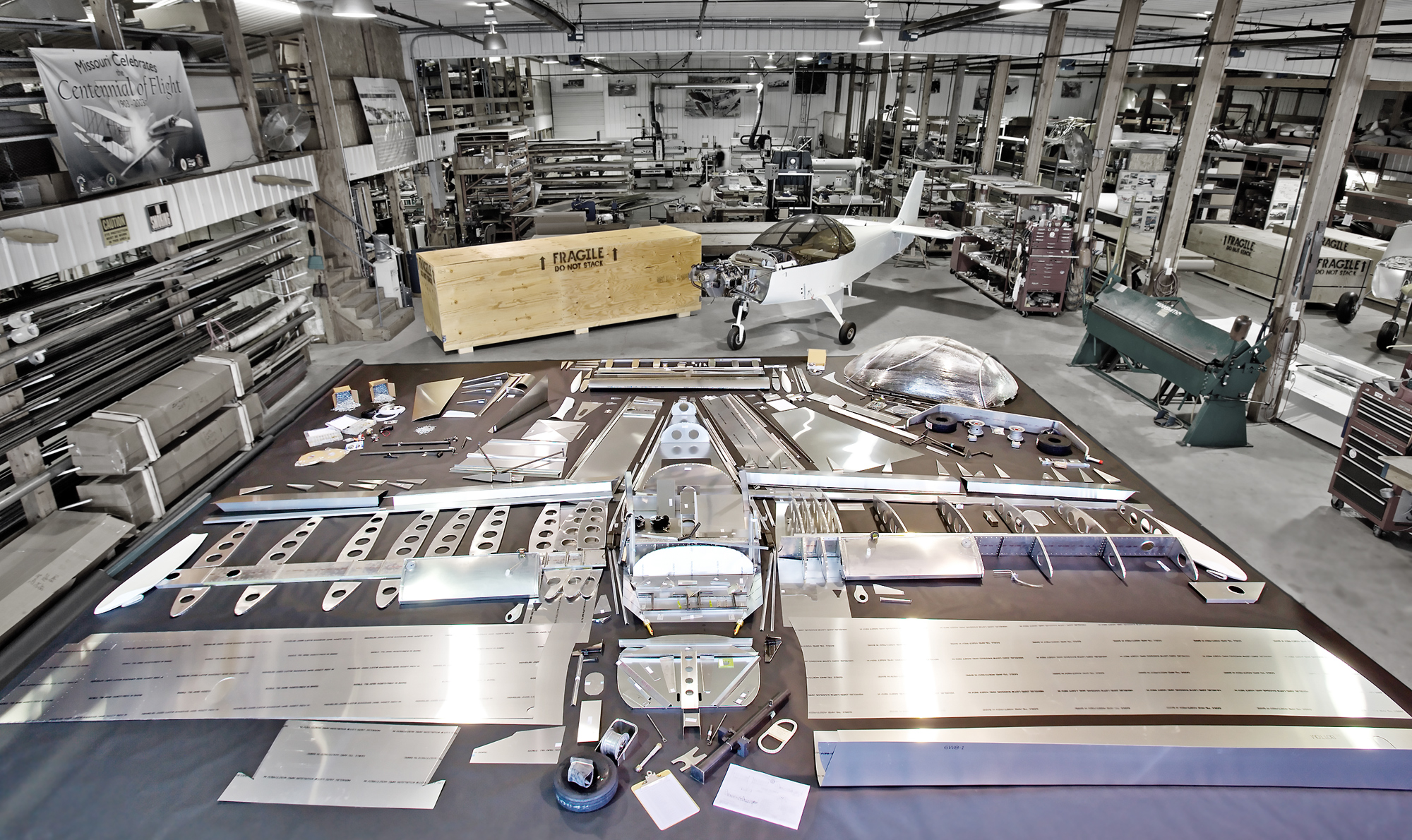

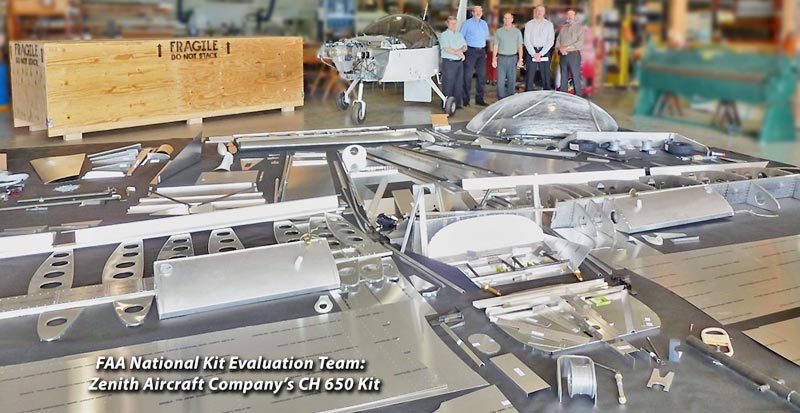

Above: The FAA's National Kit Evaluation Team (NKET) evaluates the entire CH 650 kit inside the Zenith Aircraft factory (May 25, 2011)

Build your own CH 650 from:

The new ZODIAC CH 650 for Sport Pilots

We invite you to come visit the factory in Mexico, Missouri to see how the aircraft kits are manufactured, go up for a demo flight (by appointment), and attend a factory workshop to gain hands-on kit building experience.

New Kit Features...
Easier and Quicker to Build!

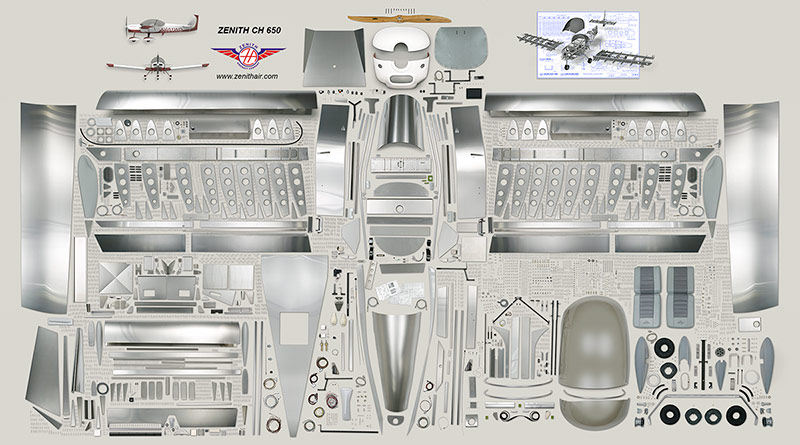

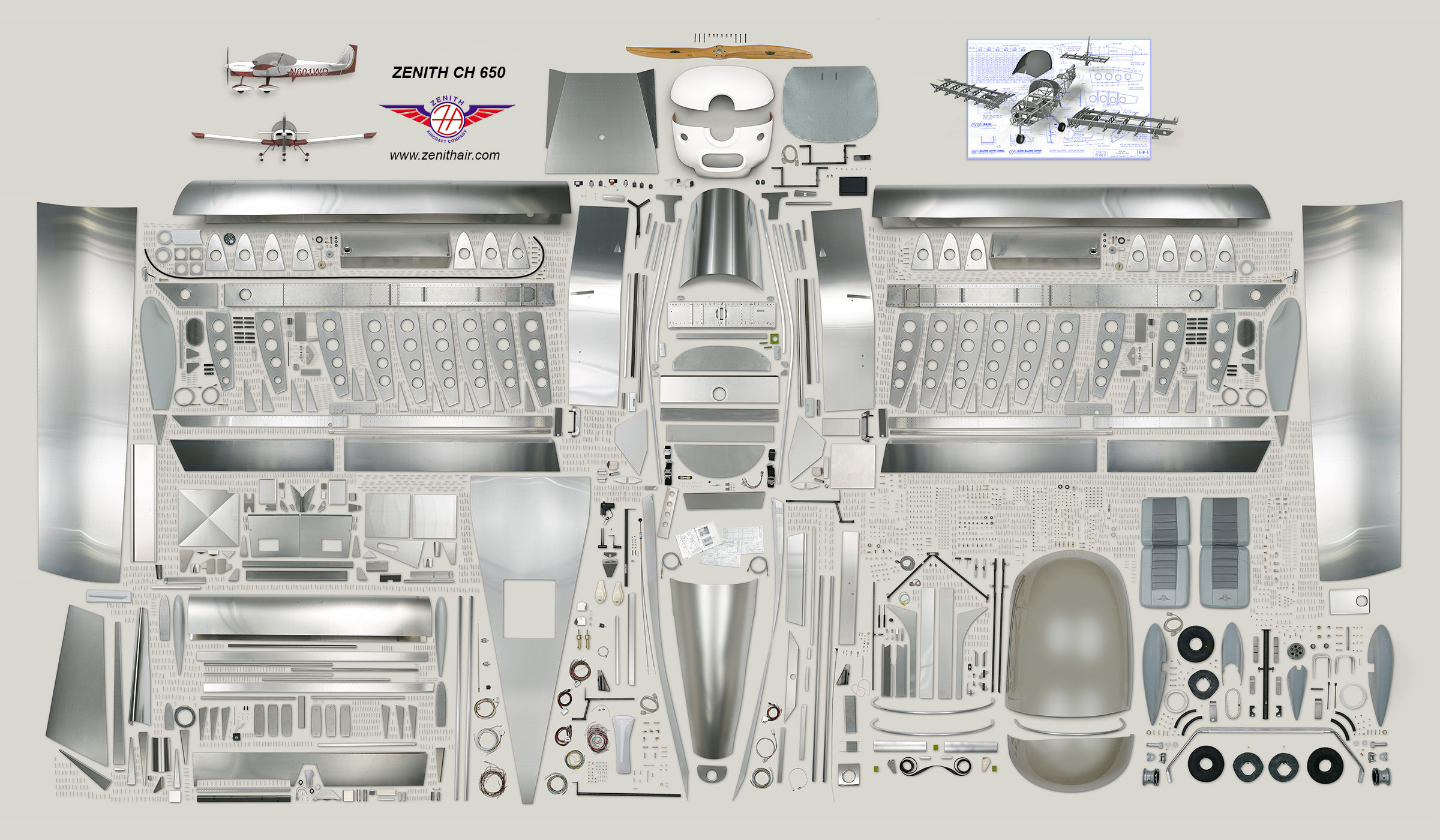

The standard kit for the Zodiac CH 650 includes many precision CNC pre-cut and pre-drilled skins and components, and also includes CAD Drawings and Photo Assembly Manuals.

  • Click here to view a video clip of parts manufacturing with the CNC router  (5.75 mb).

Pre-drilling and cutting skins
CH 650 News and Updates:
For the latest, visit the exclusive ZENITH.AERO Online Community for news and updates from the factory as well as from Zenith builders, owners and pilots from around the world.
Follow us on facebook for exclusive updates:
Pilot magazine - May 2012 The new Zenith CH 650 with the UL350iS engine, on the cover of Pilot magazine

PILOT magazine, May 2012 issue, cover story: "Zippy Zodiac"  Cover story and flight review by Dave Unwin, pages 26 - 32.

" I liked the CH650 a lot ... it offers exceptional value for the money."

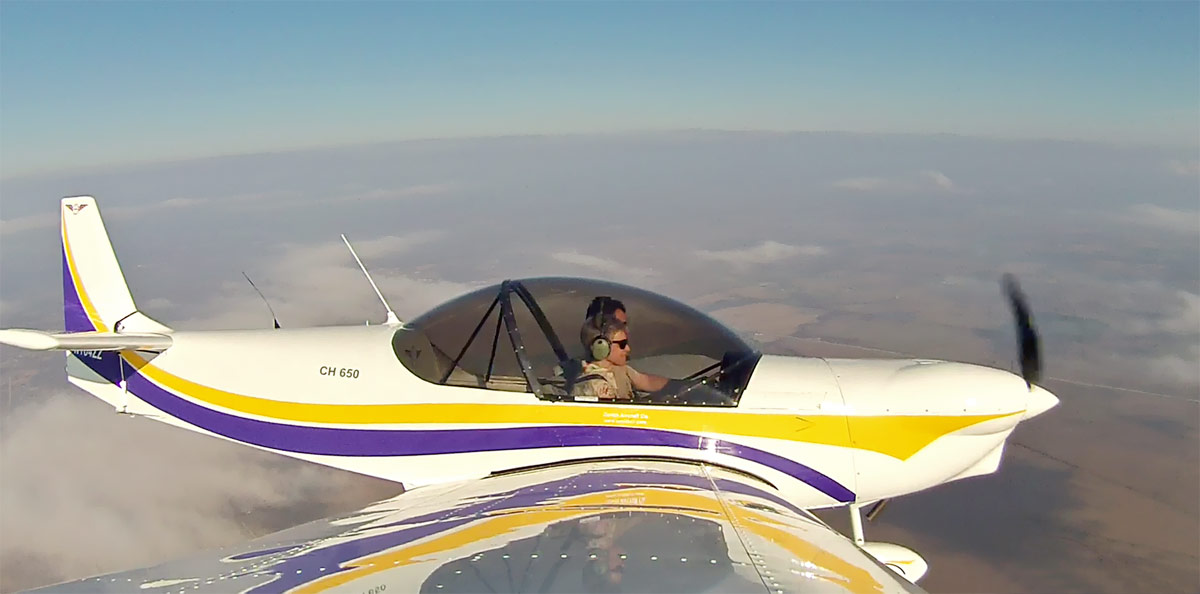

Side View: New UL Power Cowl Flying the CH 650 with the new UL Power UL350iS engine cowl
Flight Simulator Files for X-Plane Building the Zenith CH 650 cruiser virtually for the latest version of the X-Plane flight simulator program, which will allow you to fly your favorite plane with unparalleled realism and accuracy.
Already, you can download the STOL CH 750 files for X-Plane version 9.x
http://www.zenith.aero/profiles/blogs/xplane
Kitplanes flight review Kitplanes on Facebook:

Kitplanes magazine photo previews of upcoming flight review of the Zenith CH 650 cruiser.

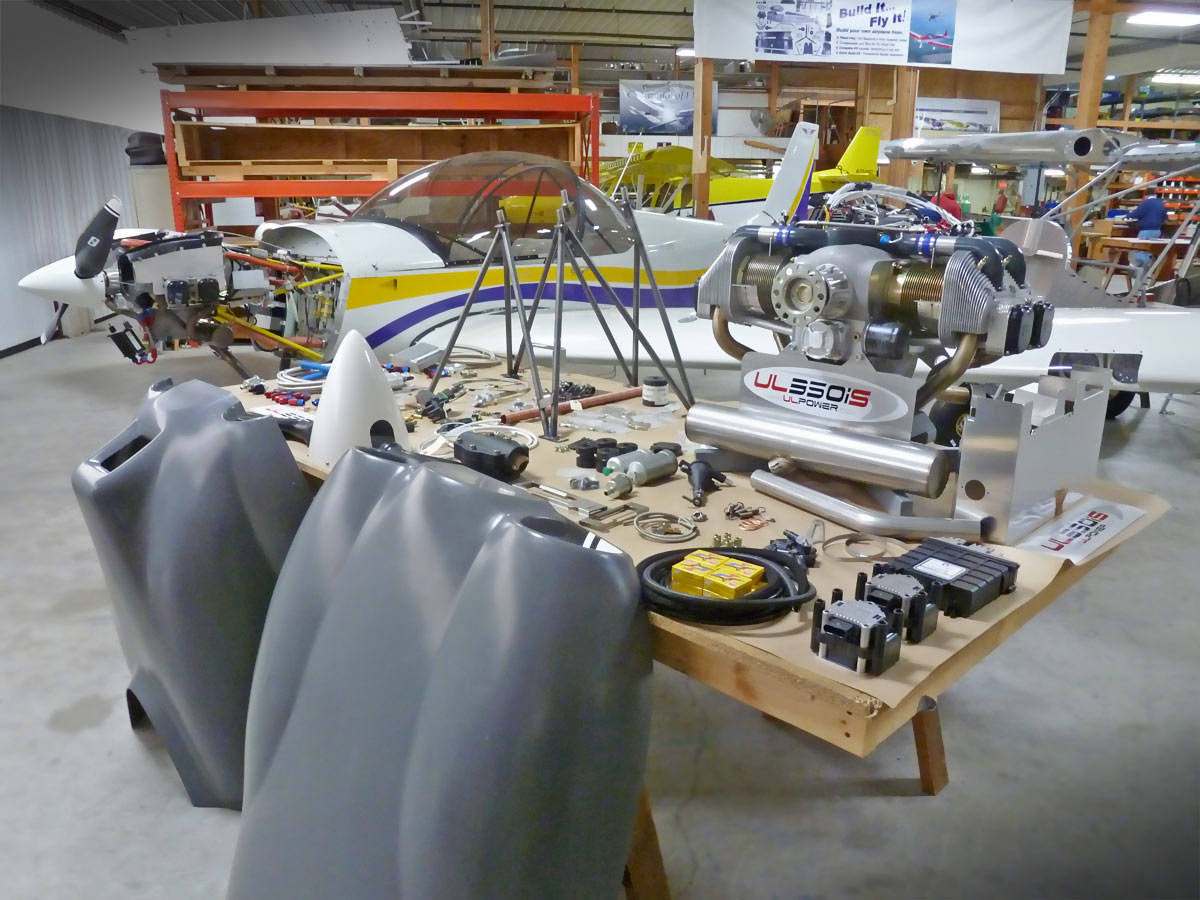

UL Power Firewall-Forward (FWF) kit package The UL Power Firewall-Forward (FWF) kit package from Zenith Aircraft Company. Shown here: The 130-hp UL350iS powerplant in the CH 650 cruiser.
Video Clip: Zenith CH 650 New Video Clip:

Flying the Zenith CH 650 home from Sebring (Florida) to Mexico (Missouri)

Video Clip: Zenith Report New video report on Zenith from AircraftReporters.tv

Dan Johnson interviews Zenith Aircraft Company's Roger Dubbert about the full line light sport aircraft kits from Zenith, including details on Zenith's CH 650 with the UL Power UL350is engine installation.
Flying with the UL350iS engine Flying the CH 650 with the UL Power engine:
Flight and performance report
130-hp UL350iS firewall-forward engine installation October 2011:
Zenith Aircraft Company and UL Power North America announce availability of complete firewall forward kits for the UL Power engine following the successful installation and testing of the 130-hp UL350iS powerplant in the CH 650 cruiser.
CH650 with the 130-hp UL350iS The new Zenith CH 650 demo aircraft equipped with a brand new UL350iS engine installation and prototype cowl.  More new photos.
McDaniel CH650 From AirVenture 2011: Shayne and Phyllis McDaniel (of Pineville, Missouri) with their beautiful CH650B aircraft powered by a Corvair engine. Their kit was the first amateur-built CH650B model registered in the US:

"The building process was thoroughly enjoyable and an exceptional learning experience. Zenith was helpful with the coordination of the new CH650 kit parts and their new CH650 drawings. Without a doubt, William Wynne is the Corvair engine conversion expert."

From the zenith.aero: Zeniths to Oshkosh summary
First Flight: CH650 with the 130-hp UL350iS First Flight Video Clip | New: Second Flight Video Clip

Sweet Flyer!  See Zenith's new factory demonstrator CH 650 fly behind UL Power's UL350iS engine and with the dual Dynon SkyView panel

See it fly!  Click here to view the video in full HD

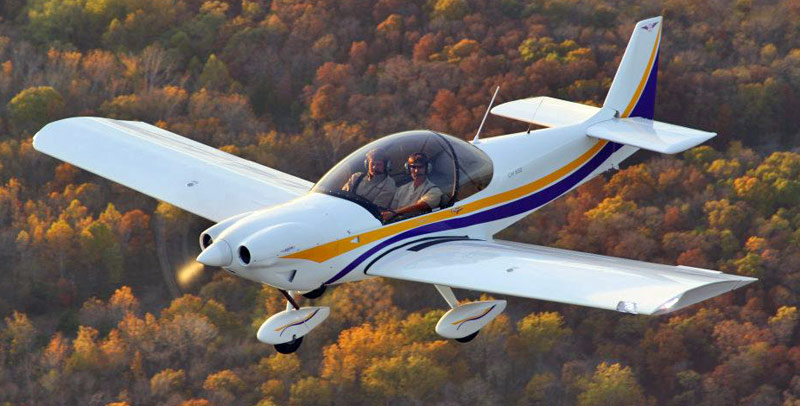

Aviation Consumer magazineThe July 2011 issue of Aviation Consumer magazine has a feature story / flight report on the CH 650 LSA: "Based on the CH601, the design is sporty and fast and has a new, beefed-up wing structure."  Aviation Consumer editor Paul Bertorelli writes that "The CH650 has superb cockpit visibility... The baggage compartment, which is adequate if not generous, is an easy-to-access shelf behind the two seats.  That makes it perfect for grabbing stuff during cross-country flight."  He concludes that "...the CH650 seems like an honest, straightforward low-wing cruiser..." and that kit manufacturer Zenith Aircraft Company "stands behind what is designs and builds."
Excerpted from Aviation Consumer magazine, July 2011 issue, pages 13 - 16.  Read more press reviews.
Zenith's new factory demonstrator CH 650 with UL Power's new powerful yet lightweight UL350iS engine: This four-cylinder, direct-drive air-cooled engine puts out 130-hp with an installed weight of just 172 lbs., and features full FADEC (full authority digital engine control) with multi-point electronic fuel injection and dual electronic ignition (with variable timing).
Click here for more details on this engine.

Hear it and see it!  Click here to view a HD video clip.

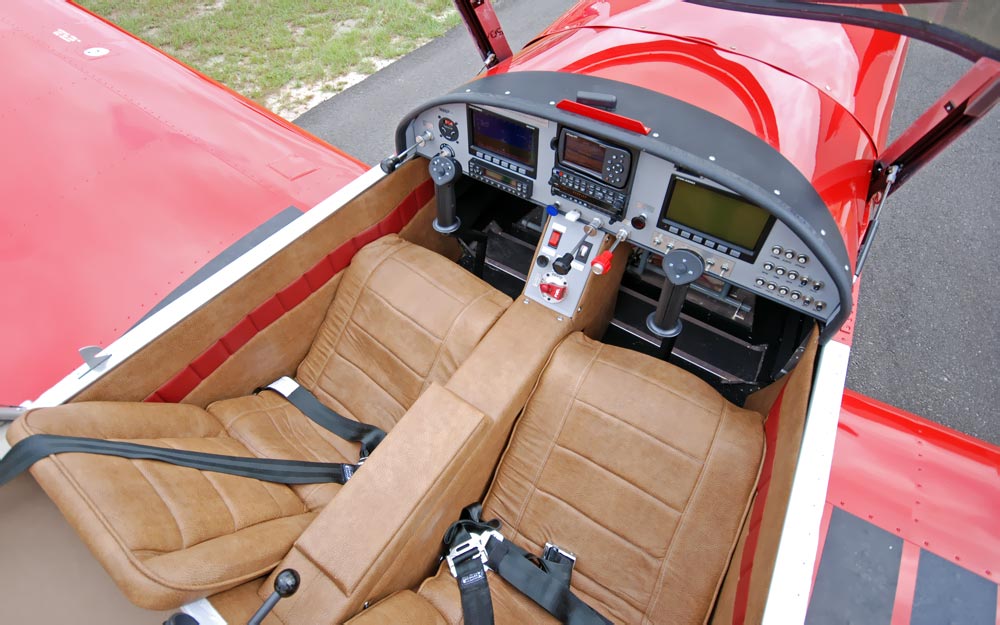

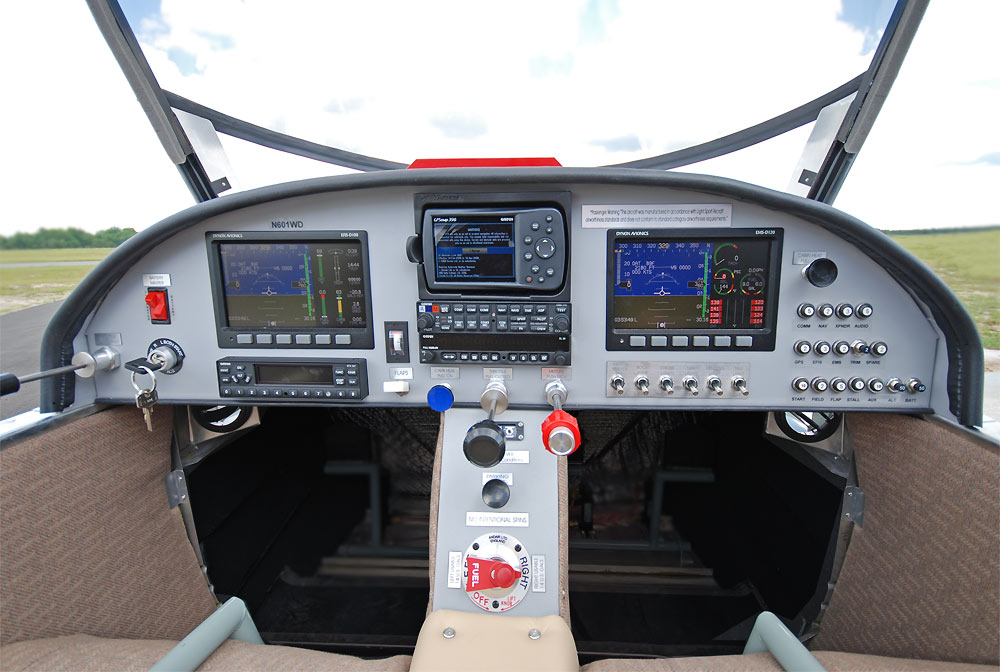

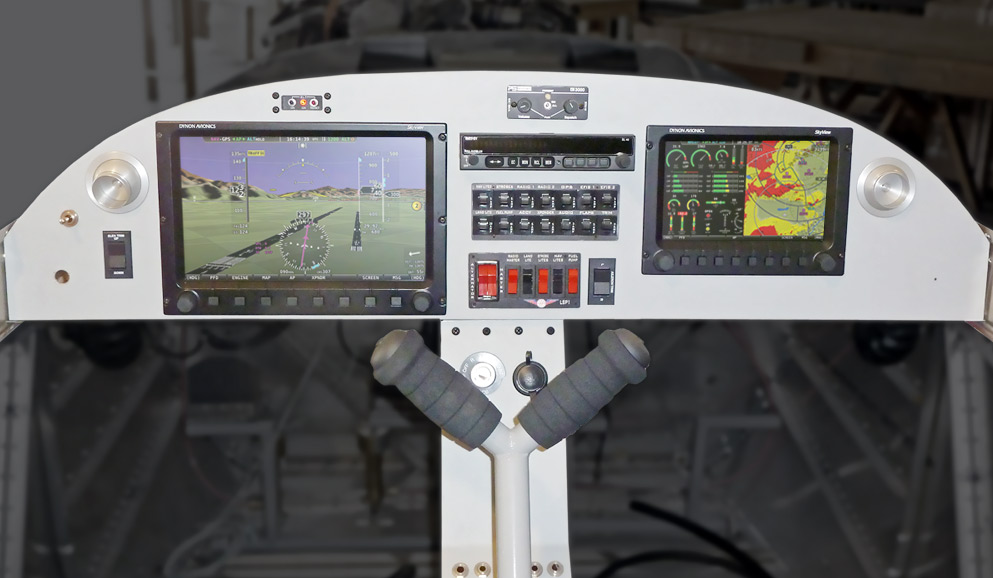

CH 650 instument panel The instrument panel of Zenith's new CH 650 factory demo aircraft features dual Dynon SkyView glass panel multifunction displays. As a sleek cross-country cruiser, the autopilot will be a welcome feature in the CH 650 kit plane on long cross-country flights.

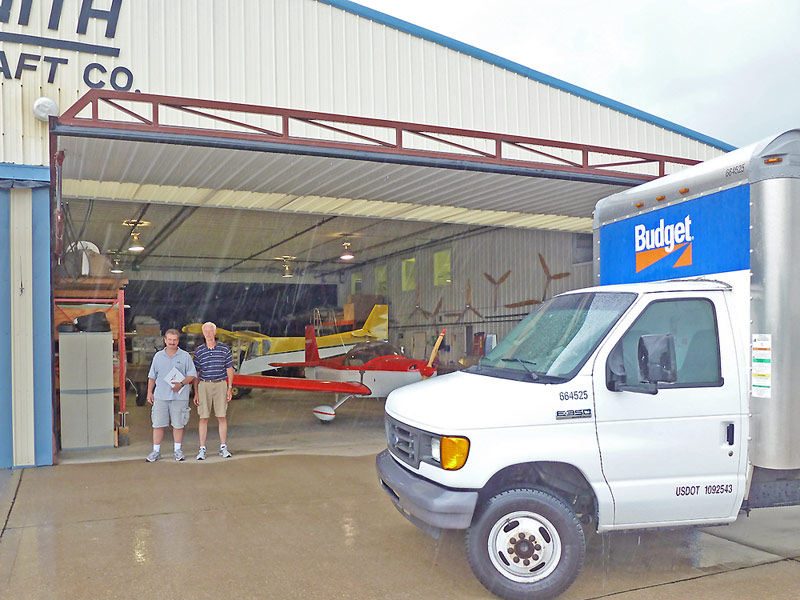

Kit pick up at the factory July 8, 2011:
Steve A. and Ron G. each picked up a complete kit of their favorite aircraft yesterday: A CH 650 for Ron and a CH 750 for Steve. Despite some rain, they loaded the two complete airframe kits in the Budget rental truck for the drive home to Detroit (where the two are GM engineers).
By picking up the kit at the factory, Steve and Ron saved both the crating charges and the freight charges, and they were able to share the rental truck fees, while also being able to visit the factory (for the first time) and go up in a demo flight in the aircraft.
FAA NKET: CH 650 kit June 2011:
FAA's National Kit Evaluation Team (NKET) visited the Zenith Aircraft Company factory to evaluate and determine that the CH 650 B kit meets the intent of the "51% rule," allowing an amateur-builder to register the plane as an "amateur-built - Experimental" (kit) aircraft (meeting the "major portion" requirement of Title 14, Code of Federal Regulations part 21, Certification Procedures for Products and Parts, § 21.191(g).
Zodiac CH 650 with ULPower Kitplanes.com Video Clip from Sun'n Fun 2011:

Zenith introduces the ULPower engine on the sleek new CH 650.  The ULPower engine is a lightweight direct-drive, air-cooled engine with full FADEC.

Flying the Zodiac CH 650

New

HD Flying Video Clip:  Flying the CH 650 to Lake Tahoe

Flying the Zodiac CH 650

Flying Video Clips:  Join CFI Paul Hamilton with the Zodiac CH 650...

CFI Paul Hamilton offers LSA flight training in the Zodiac: SportAviationCenter.com

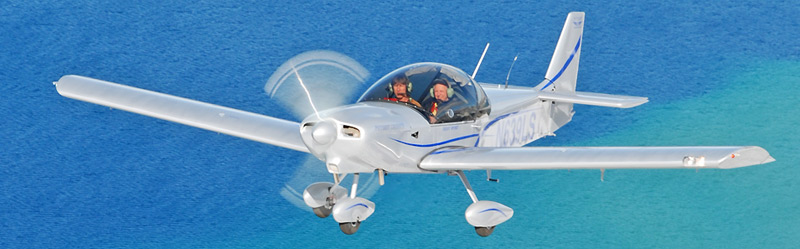

Zodiac CH 650 LS On owning and operating the ZODIAC CH 650 LSi:

"I initially considered the AMD Zodiac because I wanted a special light-sport aircraft (S-LSA) that was approved for night flight and instrument flight rules (IFR).  I like the idea of working with a U.S.-based company, and it turned out to be a good decision... As an instrument trainer, the Zodiac is economical, stable and provides an approach speed that gives the student time..."
   - Y. Forsyth, Gaithersburg, MD (Excerpted from EAA Sport Pilot magazine. December 2008).

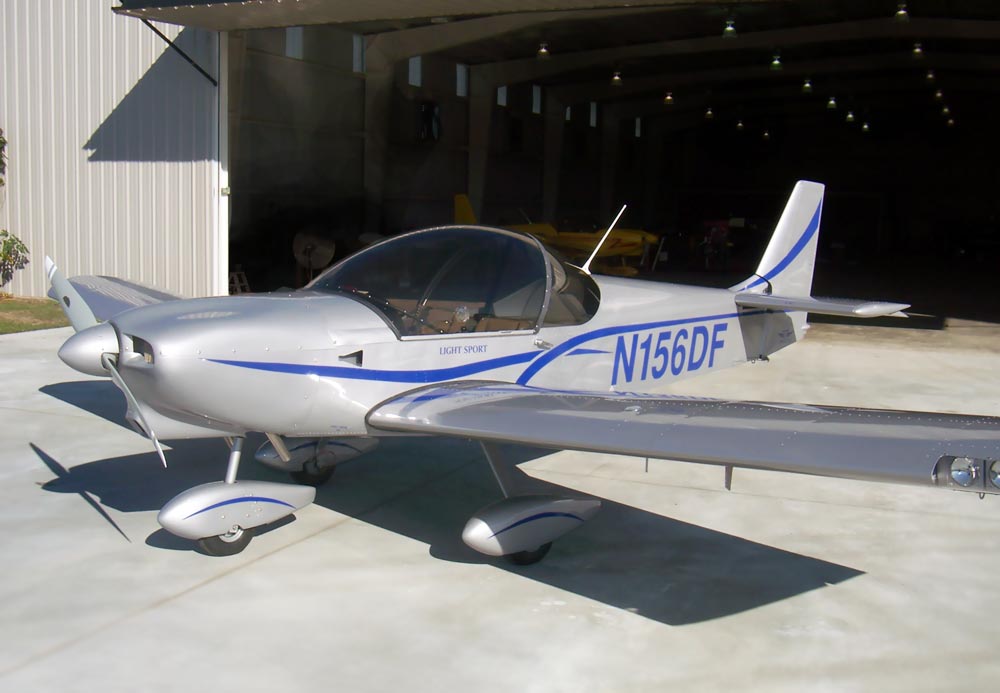

Zodiac CH 650 Factory-Assembled ZODIAC CH 650 LS:

IFR-certified AMD Zodiac S-LSA production aircraft with a 100-hp Continental O-200 powerplant for Sport Pilots.

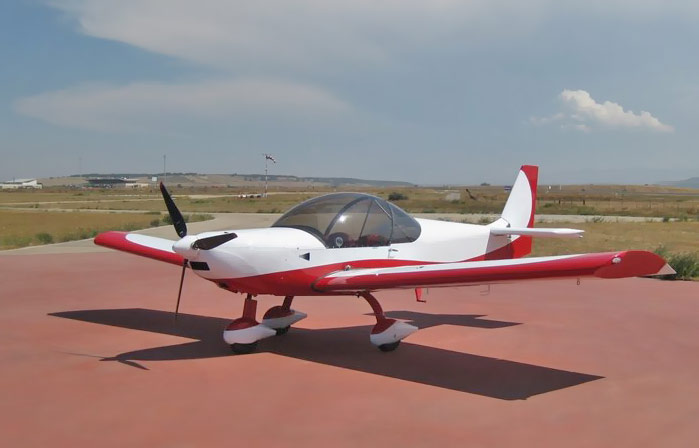

Zodiac CH 650 E European ZODIAC CH 650E model:

The European model of the new Zodiac CH 650 features a lower weight (to meet European ultralight or microlight rules) and the 100-hp Rotax 912 ULS powerplant.

Click here for the latest ZODIAC updates

Zodiac CH 650

ZODIAC Updates

Search zenithair.com

ZODIAC Home

ZENITH AIRCRAFT Home

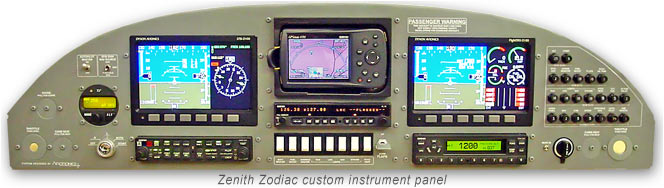

Zodiac CH 650 custom instrument panel



ZODIAC XL S-LSA custom panel, dual control sticks.

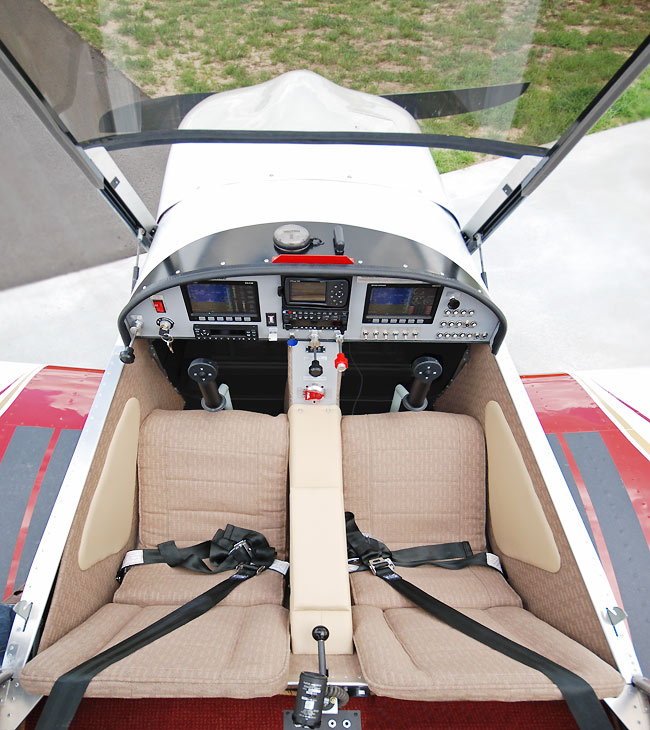

A clean and simple, yet very complete, custom Zodiac glass panel. Notice the dual control sticks.
