ZODIAC CH 601 Series Kit Plane



ZODIAC XL shown with option Wheel Fairings

ZODIAC XL Wheel Fairings Option Kit

Wheel Fairing Option Wheel Fairing Option

 (click images for larger view)

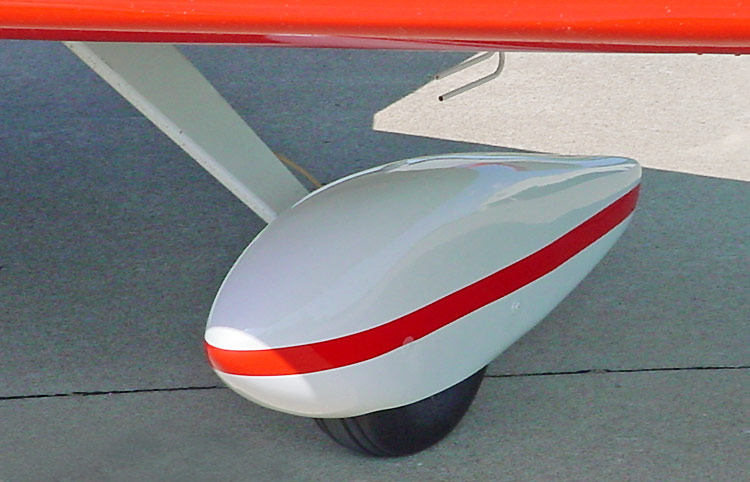

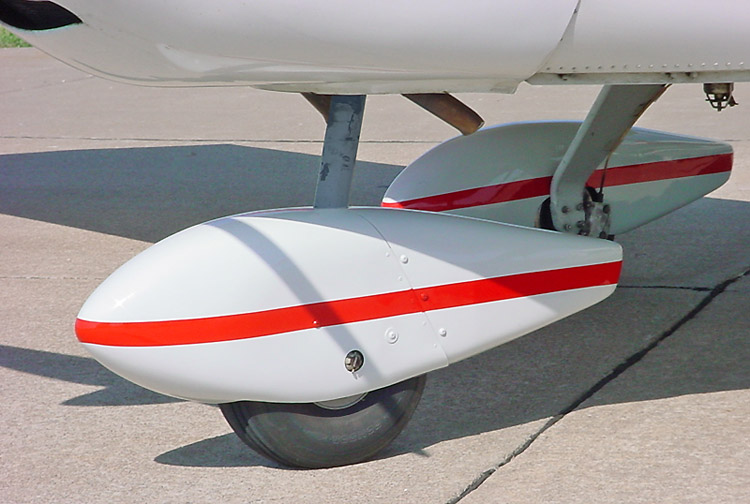

Wheel Fairing - Left Main Wheel Fairing - Nose

New fiberglass wheel fairings increase the aerodynamics of the ZODIAC XL while giving the ZODIAC design a sleek look.  The new wheel fairings are narrower in width than previous Zodiac wheel fairings, and are easier and quicker to install to the 500x5 aircraft wheels.

The Wheel Fairings are supplied in kit form, ready for installation to the standard landing gear.

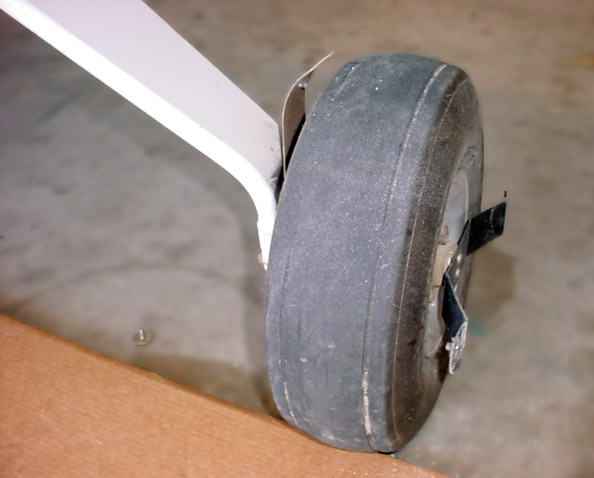

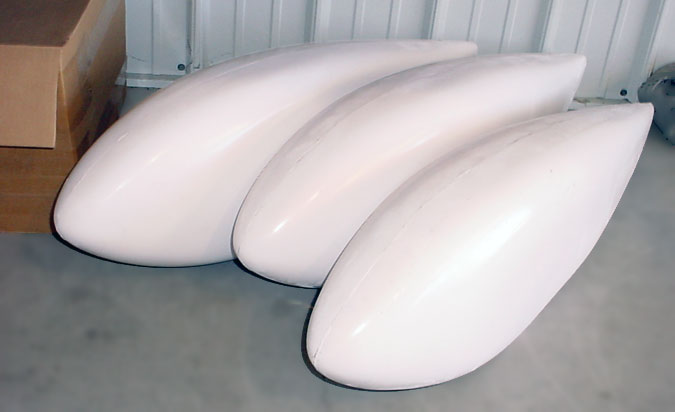

The supplied three wheel fairings        Main gear installation brackets.
The fiberglass wheel fairings kit requires  trimming to fit. Steel attachment brackets are supplied with the kit.

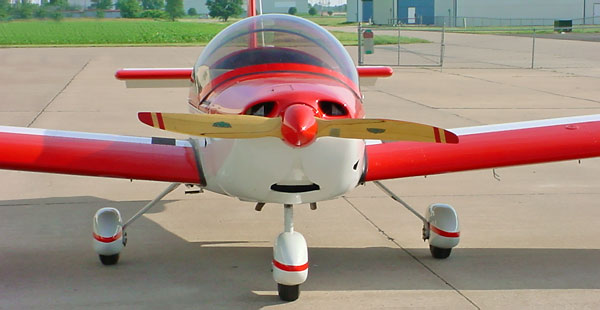

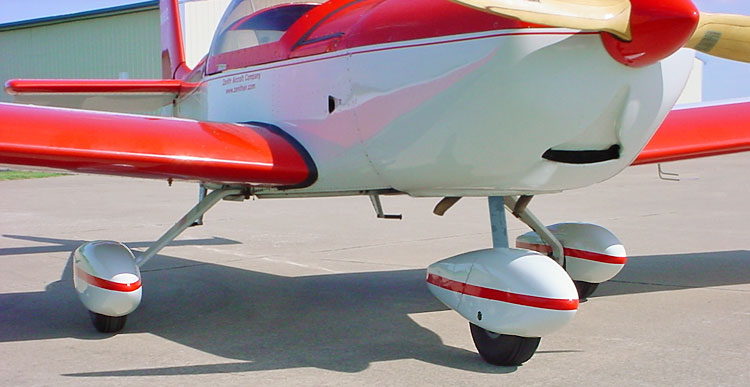

Some sample installations:

ZODIAC XL S-LSA   ZODIAC XL - S-LSA

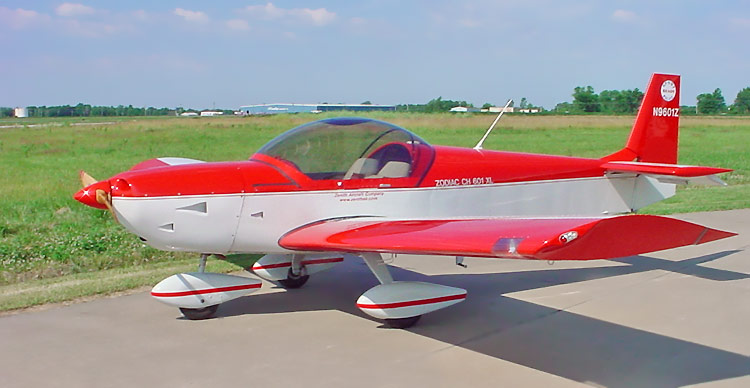

ZODIAC XL shown with option Wheel Fairings

All prices, equipment and availability subject to change without prior notice.
