Drawings & Manuals
ZODIAC Drawings and Manuals

Supplied with the complete ZODIAC kit, the drawings are not just assembly instructions (as with most kits), but are detailed 11" x 17" CAD blueprints of the entire airframe assembly, and come with an assembly manual. Supplied with a serial number, you can actually build your own aircraft from "scratch" following the drawings and manuals.  If purchased separately, the cost of the drawings and manuals is deductible off the cost of the full kit.

Click here for details about the new ZODIAC XL Drawings and Manuals.
Builders that have previously purchased the Drawings and Manuals for the ZODIAC CH 601 UL, HD or HDS models can update their drawings to the latest edition. Click here for more info.

"Zenith is one of the few kit makers that still offers a plans-only option; the company supplies complete kits...
  but it will also sell sub-kits, individual parts, or just the plans and builder's manual."
- KITPLANES magazine: "The Scratch-Building Alternative" July 2008


Following are some selected sample CAD drawings from the ZODIAC CH 601 HD drawings.  These are sample drawings only, and are for informational and educational purposes only.

Fuselage General Arrangement 6-0 pdf image

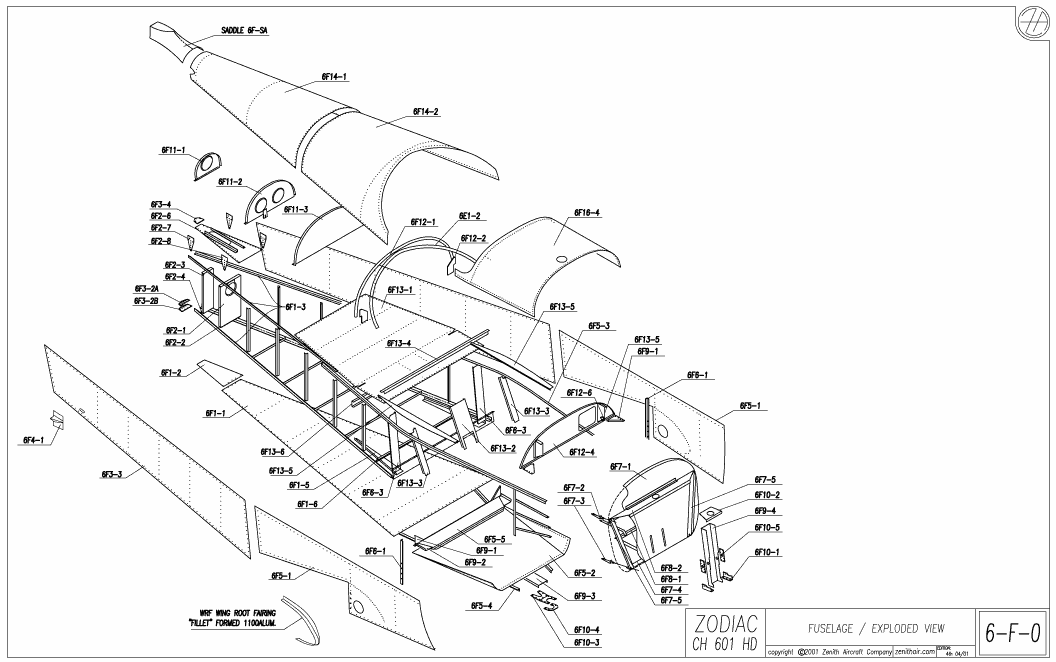

Fuselage Exploded View 6-F-0 pdf image

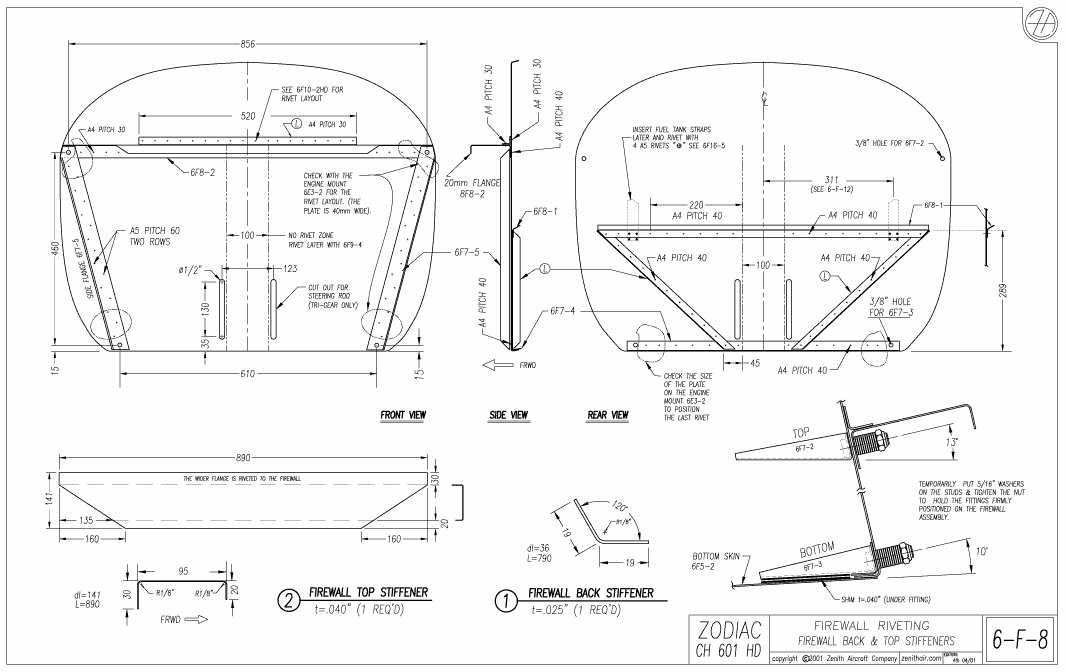

Firewall 6-F-8 pdf image

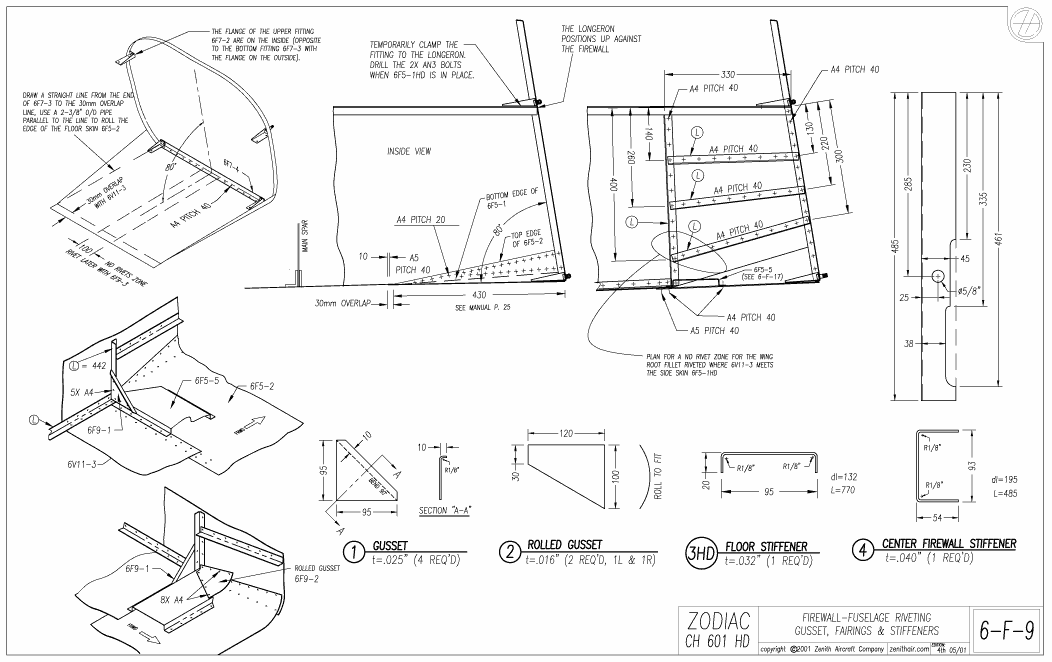

Firewall Installation 6-F-9 pdf image

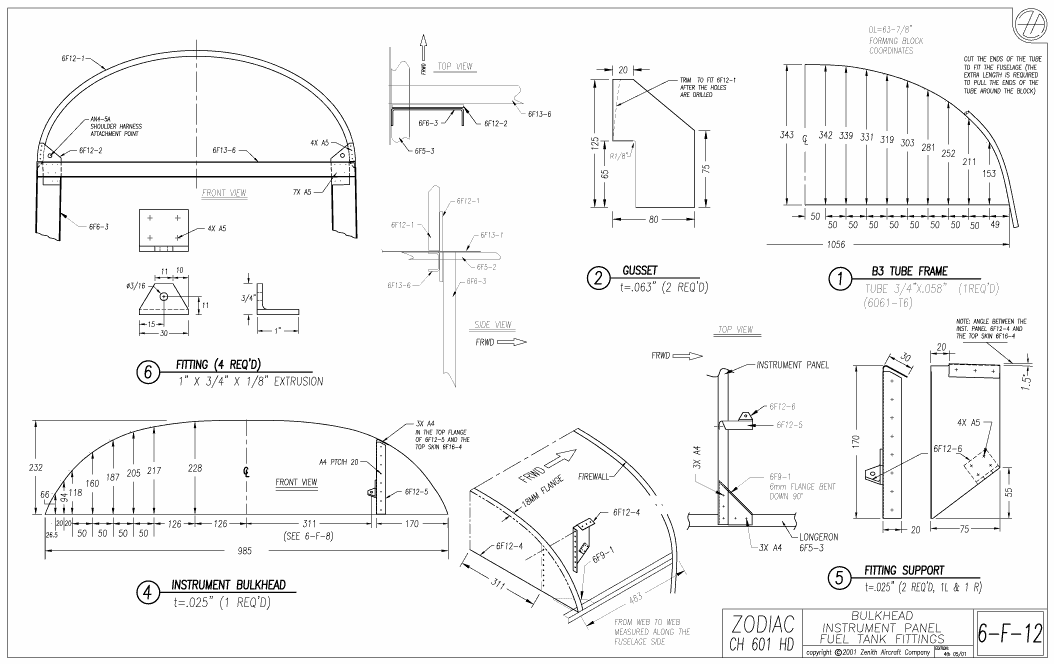

Instrument Panel / Bulkheads 6-F-12 pdf image

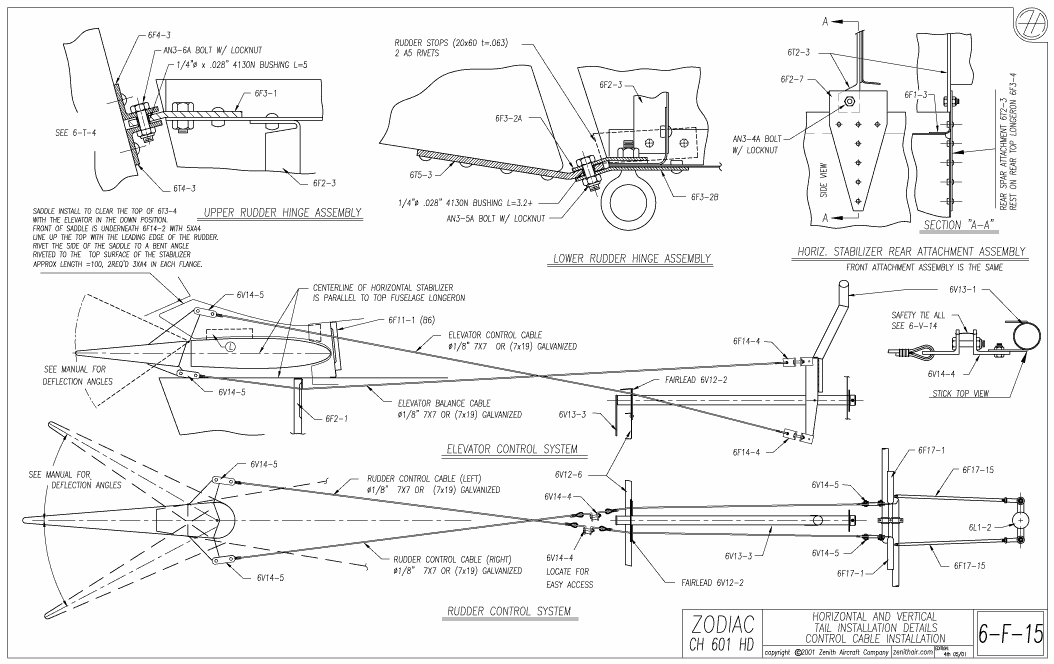

Tail Control Cables 6-F-15 pdf image

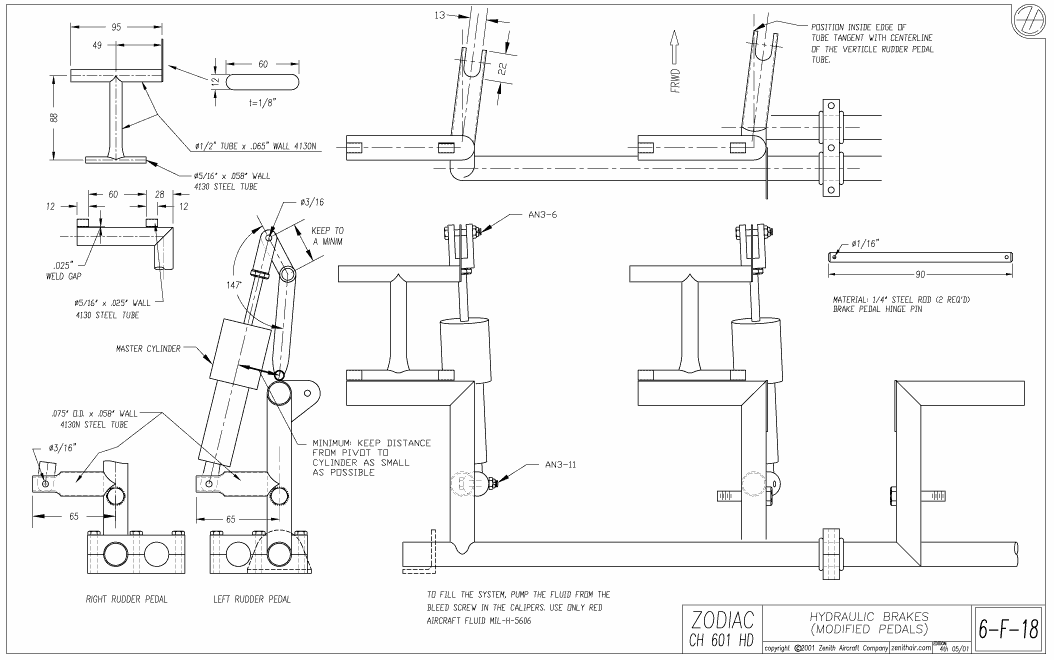

Rudder Pedals / Brakes 6-F-18 pdf image

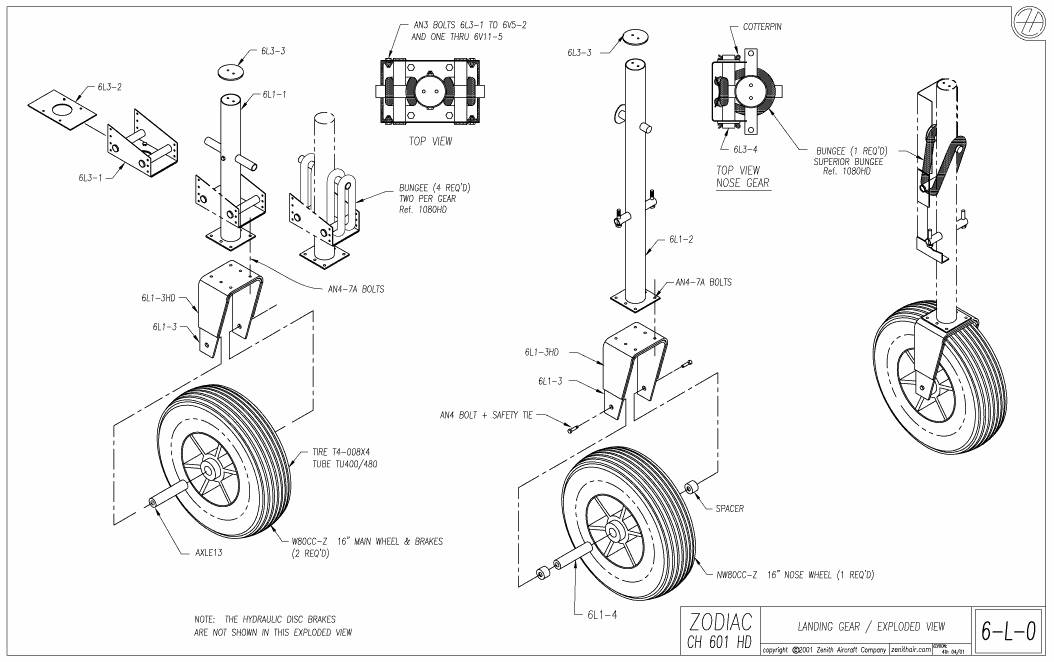

Landing Gear 6-L-0 pdf image
Landing Gear Detail 6-L-3 pdf image

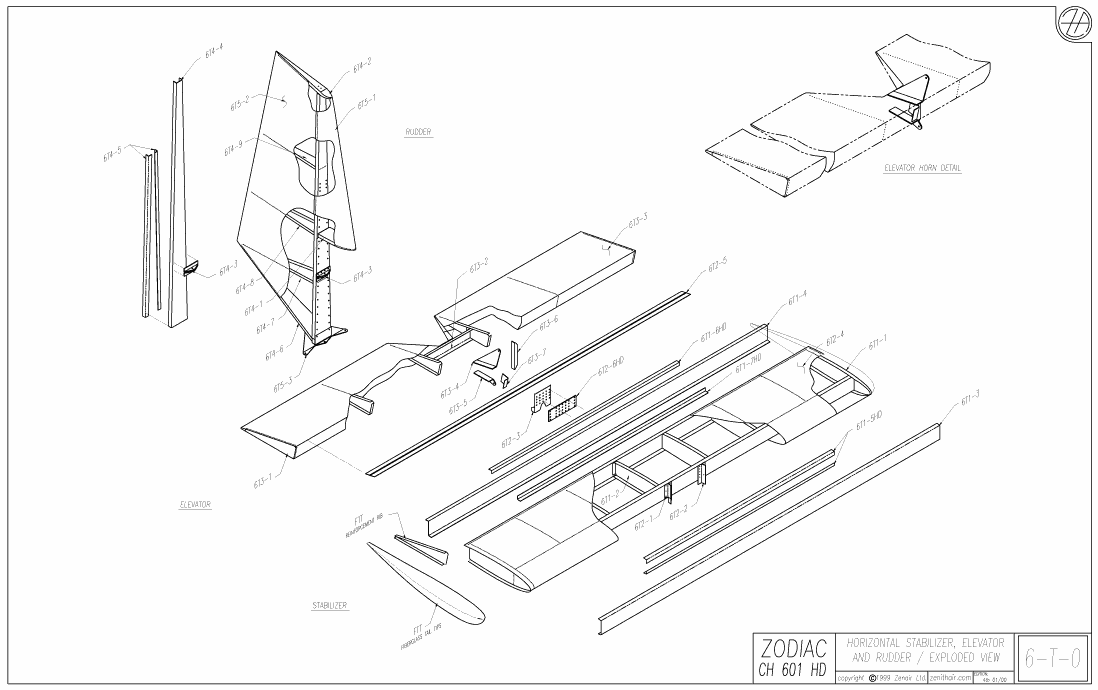

Tail Sections 6-T-0 pdf image

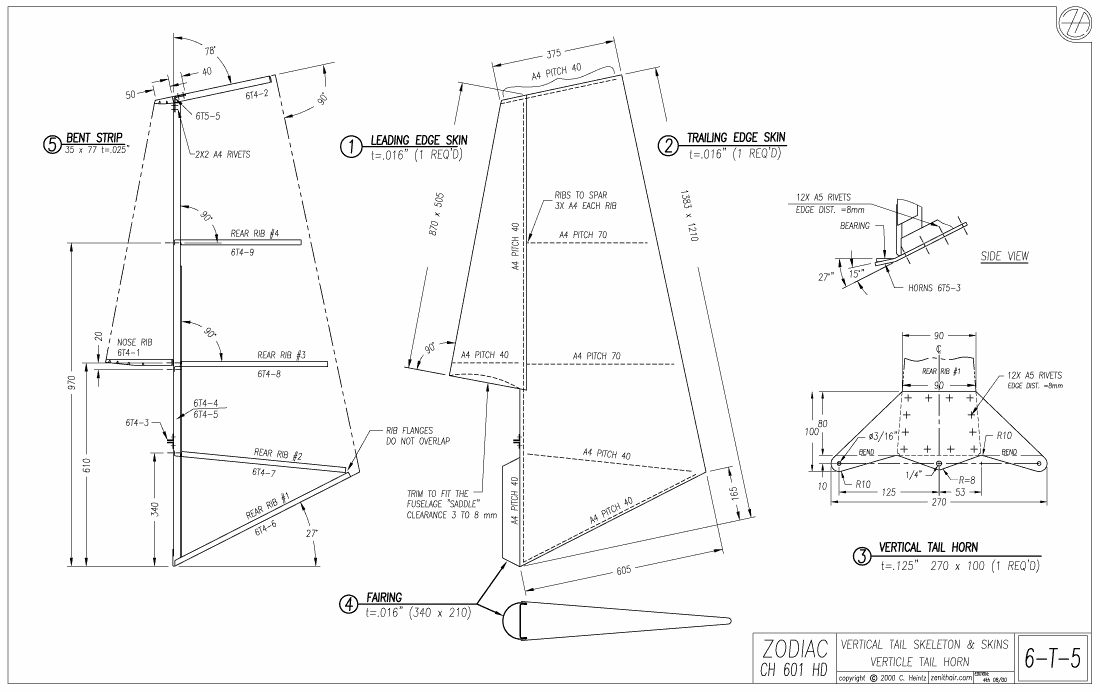

Rudder Detail 6-T-5 pdf image
Wing Assembly 6-V-0 pdf image
Wing Ribs 6-V-1 pdf image

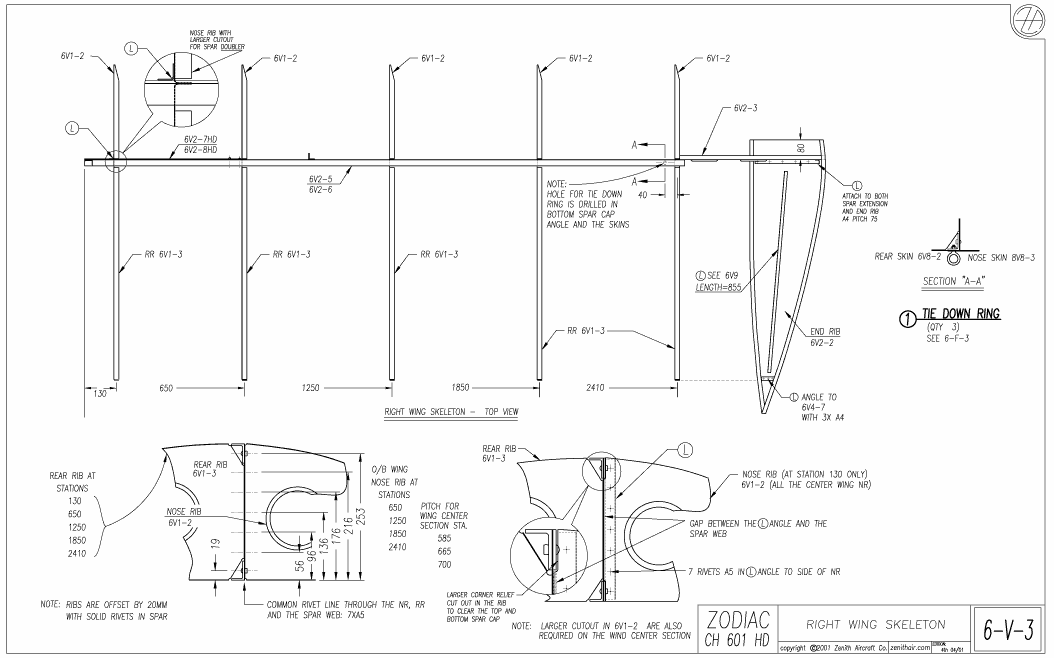

Internal Wing Structure 6-V-3 pdf image

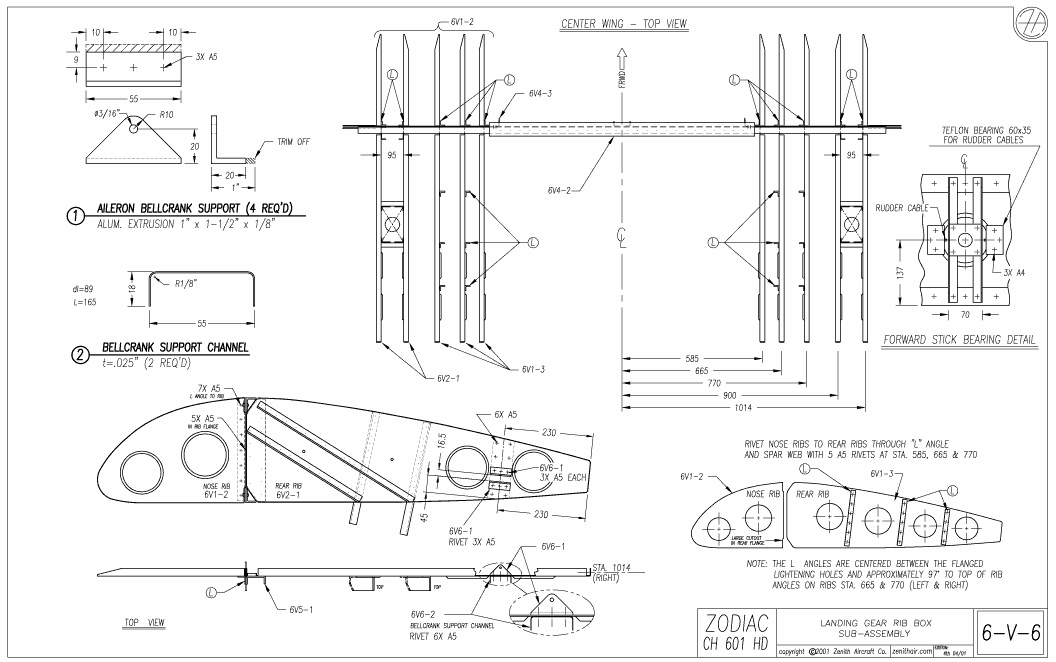

Center Wing / Main Gear 6-V-6 pdf image

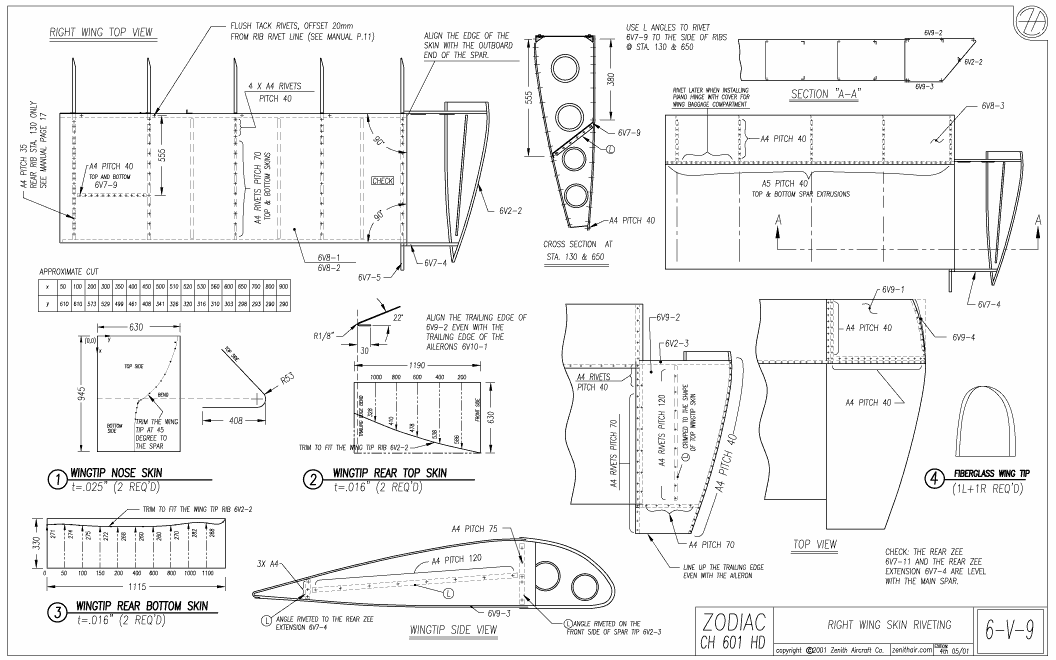

Wing Skin Riveting 6-V-9 pdf image

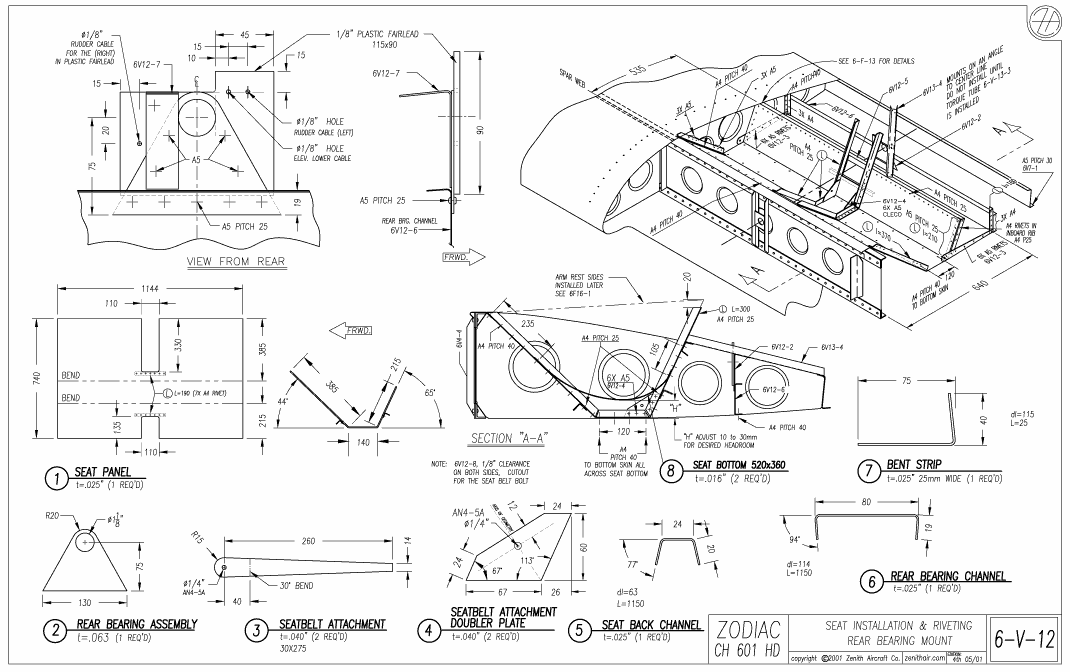

Seat Arrangement 6-V-12 pdf image

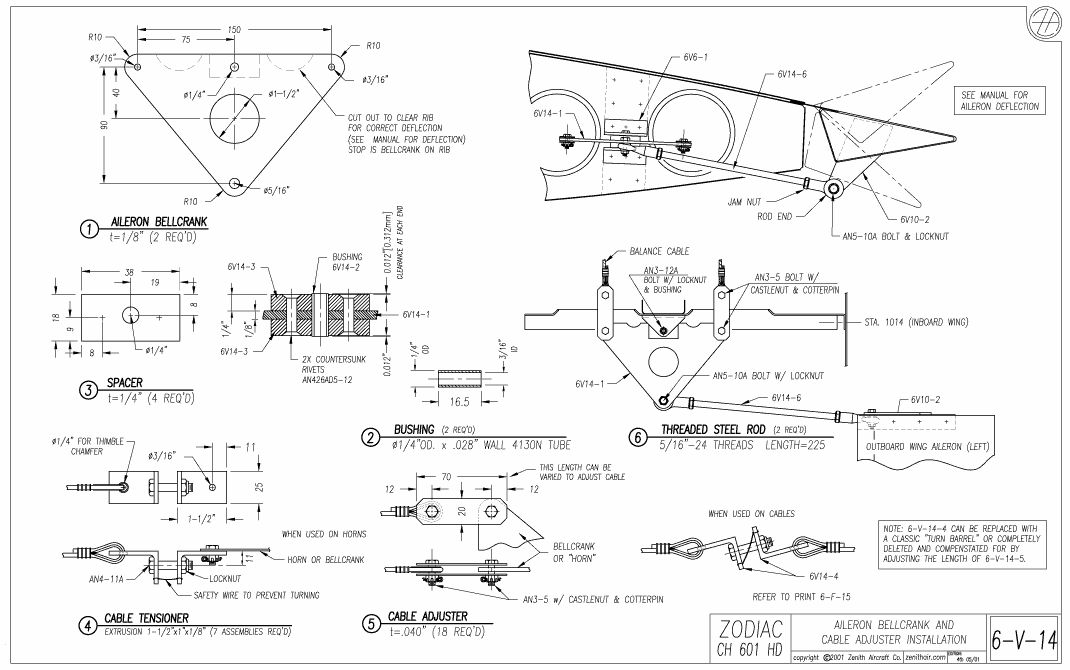

Aileron Bellcrank Control 6-V-14 pdf image
Wing Attachment & Aileron Control 6-V-15 pdf image
  • Click here for information on purchasing the ZODIAC Drawings and Manuals.
  • Click here to view CAD drawings online (using Autodesk® Express Viewer).
  • Click here for details about the new ZODIAC XL Drawings and Manuals.
