ZODIAC CH 601 Series: RUDDER TAIL SECTION

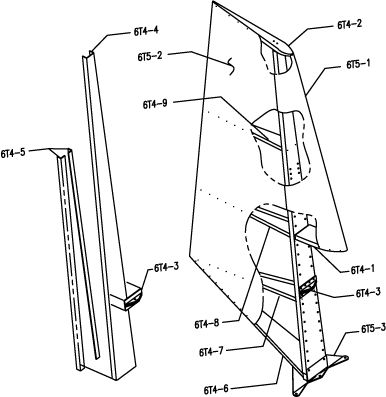

ZODIAC CH 601 Series - Rudder Assembly

  ZODIAC XL Rudder Kit (part of the complete tail kit)
  • Click here to quote/order the complete Rudder Starter Kit.
  • Click here to quote/order other component kits.
  • Click here for details about building the Rudder at a Factory Workshop.
  • Illustrated Parts Catalog: Rudder: 6-XT-3

The following parts are included in the complete Rudder Kit.  Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

ZODIAC CH 601 Series - RUDDER PARTS:
Part Number Part Description (click for illustration) Required Quantity Unit Price Inv. Code
6T4-1 NOSE RIB 1 $18.00 A
6T4-2 TIP RIB 1 $19.50 A
6T4-3 UPPER BEARING 2 $3.20 A
6T4-4 VERTICAL TAIL SPAR 1 $46.40 A
6T4-5 DOUBLER ANGLE 2 $14.40 A
6T4-6 REAR RIB #1 1 $17.40 A
6T4-7 REAR RIB #2 1 $9.40 A
6T4-8 REAR RIB #3 1 $9.60 A
6T4-9 REAR RIB #4 1 $9.70 A
6T5-1 LEADING EDGE SKIN 1 $31.60 A
6T5-2 TAILING EDGE SKIN 1 $68.00 A
6T5-3 VERTICAL TAIL HORN 1 $11.20 A
6T5-4 FAIRING 1 $4.10 A
6T5-5 RUDDER TIP ANGLE 1 $2.60 A
A4 1/8" BLIND RIVETS 300 $0.08 A
A5 5/32" BLIND RIVETS 20 $0.09 A


Note: All ZODIAC CH 601 aircraft models, including the ZODIAC XL, share the same rudder tail section.
