ZODIAC XL: HORIZONTAL TAIL SECTION

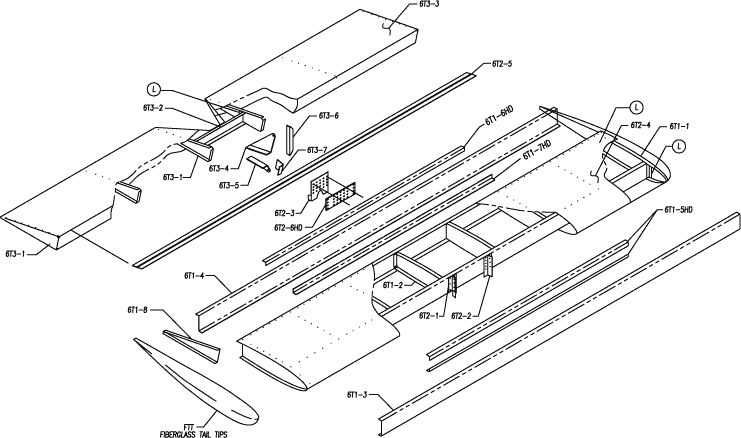

ZODIAC XL - Horizontal Tail Assembly

  ZODIAC XL Horizontal Tail Kit (part of the complete tail kit)

The following parts are included in the Tail Kit.  Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

ZODIAC CH 601 Series - HORIZONTAL TAIL PARTS:
Part Number Part Description (click for illustration) Required Quantity Unit Price Inv. Code
6T1-1END RIB 2$29.00A
6T1-2CENTRE RIB6$17.30A
6T1-3FRONT SPAR1$57.60A
6T1-4REAR SPAR1$57.60A
6T1-5HDFRONT SPAR CAP DOUBLER2$10.30A
6T1-6HDREAR SPAR UPPER DOUBLER1$10.30A
6T1-7HDREAR SPAR LOWER DOUBLER1$10.60A
6T1-8TIP RIB2$8.00A
6T2-1FRONT SPAR ATTACHMENT2$11.20A
6T2-2ATTACHMENT DOUBLER2$4.10A
6T2-3REAR SPAR ATTACHMENT1$24.00A
6T2-4STABILIZER SKIN1$114.00A
6T2-5PIANO HINGE (MS20257-4) l=6ft1$16.50A
6T2-6HDSHIM1$5.20A
FTTLLEFT FIBERGLASS TAIL TIP1$41.00A
FTTRRIGHT FIBERGLASS TAIL TIP1$41.00A
6T3-1LLEFT ELEVATOR RIB3$16.00A
6T3-1RRIGHT ELEVATOR RIB3$16.00A
6T3-2ELEVATOR CENTRE CHANNEL 1$12.23A
6T3-3ELEVATOR SKIN1$102.00A
6T3-4ELEVATOR UPPER HORN1$15.20A
6T3-5ELEVATOR LOWER HORN1$15.60A
6T3-6ELEVATOR HORN DOUBLER1$4.00A
6T3-7ANGLE1$4.00A
6T3-8BENT STRIP1$6.40A
LL ANGLE 4ft1$7.10A
6T6-1TRIM TAB TRAILING EDGE SKIN1$9.10A
6T6-2TRIM TAB CHANNEL1$16.50A
6T6-3ELEVATOR CUTOUT CHANNEL1$16.50A
6T6-4PIANO HINGE (MS20257-4) l=4151$12.00A
6T6-5ACCESS HOLE COVER PLATE1$4.00A
6T6-6TRIM TAB HORN ANGLE1$4.20A
T2-7A-TSMAC 4A SERVO, SWITCH, INDICATOR (BOX)1$282.95A
D331055 WIRE ELECTRIC CABLE (19ft)1$19.95A
RP452-NDHOLE GROMMET 3/16" I/D1$0.35A
A41/8" BLIND RIVETS500$0.08A
A55/32" BLIND RIVETS260$0.09A
