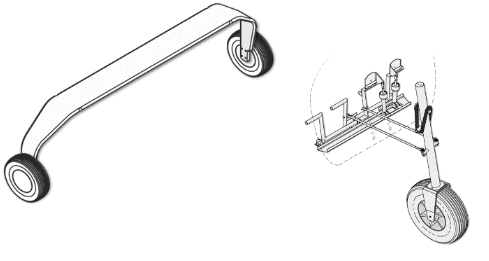

ZODIAC XL: LANDING GEAR SECTION (standard tricycle gear)

ZODIAC XL Landing Gear Kit and Parts

Click here to quote/order the complete Landing Gear Kit.
Illustrated Parts Catalog: Landing Gear 6-XG-23
Click here for ZODIAC XL gear design info.
Click here for the optional taildragger gear info.
Click here for the optional taildragger gear Parts List.

The following parts are included in the standard tricycle Landing Gear Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

ZODIAC CH 601 Series - LANDING GEAR PARTS: standard tricycle gear configuration:
Part Number	Part Description (click for illustration)	Required Quantity	Unit Price	Inv. Code
6G1-1	NOSE GEAR LEG	1	$110.00	A
6G1-2	WHEEL FORK	1	$46.00	A
6G1-3	NOSE WHEEL AXLE	1	$21.10	A
6G1-4	AXLE SPACERS	2	$4.00	A
6G1-5	FORK DOUBLER	1	$26.10	A
6G2-1	NOSE GEAR BOTTOM BEARING	1	$139.60	A
6G2-2	PIN	1	$8.25	A
6G2-3	STOP PLATE	1	$4.00	A
6G2-4	STEERING ROD	2	$14.72	A
6G3-1	SPRING GEAR	1	$756.60	A
6G3-2	CABIN ACCESS STEP	1	$34.60	A
6G3-3L	LEFT STEP FAIRING	1	$9.10	A
6G3-3R	RIGHT STEP FAIRING	1	$9.10	A
6G3-4	MAIN GEAR SUPPORT	2	$5.80	A
6G3-5	FUSELAGE STEP FAIRING	1	$8.30	A
WHLNW50-CC	NOSE WHEEL 500X5	1	$120.10	A
50-G	GROVE WHEELS, BRAKES, AXLE KIT	2	$403.10	A

Back | Online Kit Store Home | View Order (cart)

Having difficulties or have ordering or product questions?
Please send the details of your questions or problem to
orders@zenithair.com or call 573-581-9000 (Mon. - Fri. 8-5 Central)

Prices in US Funds. Prices, availability and equipment subject to change without notice. Unless otherwise specified specifically, shipping and handling charges are not included. Images are for illustrative purposes only and may not be actual representations of items or kit parts. Component kits and individual kit parts are available only to registered kit builders / owners with a valid serial number.
