ZODIAC XL: FUSELAGE SECTION

ZODIAC XL Fuselage Kit and Parts

Click here to quote/order the complete Fuselage Kit.
Illustrated Parts Catalog:

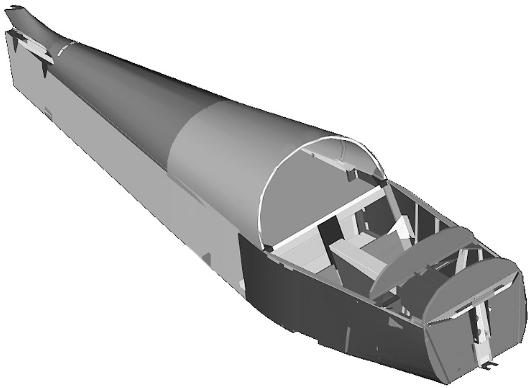

Click here for a detailed schematic of the Fuselage Assembly.
Click here for ZODIAC XL design info.

The following parts are included in the Fuselage Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

ZODIAC CH 601 Series - FUSELAGE PARTS:
Part Number	Part Description (click for illustration)	Required Quantity	Unit Price	Inv. Code
6B1-1	FRONT H.T. FRAME	1	$23.80	A
6B1-2	REAR H.T. FRAME	1	$17.40	A
6B1-3	END SKIN (BOTTOM)	1	$12.00	A
6B1-4	BOTTOM SKIN	1	$96.20	A
6B1-5	ANGLE	1	$4.60	A
6B1-6	ANGLE	1	$4.10	A
6B1-7	CROSS STIFFENER	2	$13.60	A
6B1-8	H.T. ATTACHMENT BRACKET (REAR)	2	$4.80	A
6B1-9	H.T. ATTACHMENT BRACKET (FRONT)	2	$4.80	A
6B2-1	REAR LONGERONS (TOP & BOTTOM)	4	$24.00	A
6B2-2	LONGERON DOUBLER	2	$5.10	A
6B2-3L	LEFT BOTTOM LONGERON	1	$36.75	A
6B2-3R	RIGHT BOTTOM LONGERON	1	$36.75	A
6B2-4	LOWER RUDDER HINGE (top)	1	$6.10	A
6B2-5	LONGERON SHIM	1	$4.00	A
6B2-6	LOWER RUDDER HINGE (BOTTOM)	1	$6.90	A
6B2-7	UPPER RUDDER HINGE	1	$8.50	A
6B2-8	UPPER RUDDER BUSHING 4130N	1	$3.50	A
6B2-9	LOWER RUDDER BUSHING 4.2mm	1	$5.12	A
6B2-10	HINGE SHIM	1	$4.00	A
6B3-1	FUSELAGE REAR SIDE SKINS	2	$72.00	A
6B3-2	BATTERY ACCESS PANEL	1	$6.10	A
6B3-5	FUSELAGE SIDE GUSSET	14	$2.20	A
6B3-6	REAR PANEL (TOP)	1	$8.40	A
6B4-1	42412 5/16 TIE DOWN RING	1	$4.80	A
6B4-2	CABLE OUTLET FAIRING	2	$11.75	A
6B5-1	REAR SEAT PANEL	1	$31.10	A
6B5-2	REAR FRAME CHANNEL	1	$21.20	A
6B5-3	UPPER CHANNEL	1	$24.60	A
6B5-4	ATTACH PLATE	2	$8.40	A
6B5-5	GEAR CHANNEL	1	$36.10	A
6B5-6	UPRIGHT CHANNELS	2	$16.20	A
6B6-1	FIREWALL BOTTOM STIFFENER	1	$5.60	A
6B6-2	FIREWALL	1	$140.00	A
6B6-3	FIREWALL SIDE STIFFENER	2	$10.40	A
6B6-4L	LEFT UPPER ENGINE MOUNT FITTING	1	$80.60	A
6B6-4R	RIGHT UPPER ENGINE MOUNT FITTING	1	$80.60	A
6B6-5L	LEFT LOWER ENGINE MOUNT FITTING	1	$59.80	A
6B6-5R	RIGHT LOWER ENGINE MOUNT FITTING	1	$59.80	A
6B7-1	FIREWALL TOP STIFFENER (FRONT)	1	$44.75	A
6B7-2	FIREWALL REINFORCEMENT (REAR)	1	$27.10	A
6B8-1L	LEFT GEAR GUSSET	1	$12.30	A
6B8-1R	RIGHT GEAR GUSSET	1	$12.30	A
6B8-2	FIREWALL STIFFENER DOUBLER	1	$38.10	A
6B8-3	PEDAL BEARING CHANNEL	1	$8.10	A
6B8-4	BRAKE SUPPORT CHANNEL	1	$15.00	A
6B8-5	CHANNEL OFFSET	1	$9.00	A
6B8-6	UPPER BEARING	1	$49.40	A
6B8-7	CENTER FIREWALL STIFFENER	1	$36.10	A
6B8-8	HEEL SUPPORT	1	$20.00	A
6B8-9	LOWER BEARING	1	$12.00	A
6B8-10	FORWARD GUSSET	1	$4.00	A
6B8-11	UPPER ANGLE	1	$8.60	A
6B10-1	CABIN FLOOR	1	$59.00	A
6B10-2	FLOOR STIFFENER	1	$18.90	A
6B10-3L	LEFT LOWER FRONT LONGERONS	1	$22.80	A
6B10-3R	RIGHT LOWER FRONT LONGERONS	1	$22.80	A
6B10-4L	LEFT GUSSET	1	$8.10	A
6B10-4R	RIGHT GUSSET	1	$8.10	A
6B11-1L	LEFT UPPER FRONT LONGERON	1	$53.40	A
6B11-1R	RIGHT UPPER FRONT LONGERON	1	$53.40	A
6B11-2	FORWARD SIDE SKINS	2	$46.00	A
6B11-3	GEAR UPRIGHT	4	$5.20	A
6B11-4L	LEFT MAIN GEAR ATTACHMENT	1	$82.10	A
6B11-4R	RIGHT MAIN GEAR ATTACHMENT	1	$82.10	A
6B12-1	MIDDLE BULKHEAD	1	$46.40	A
6B12-2	BAGGAGE BACK	1	$48.80	A
6B12-3	AFT BULKHEAD	1	$35.20	A
6B12-4	INSTRUMENT BULKHEAD	1	$52.00	A
6B12-5L	LEFT PANEL GUSSET	1	$6.40	A
6B12-5R	RIGHT PANEL GUSSET	1	$6.40	A
6B13-1LF	LEFT FORWARD WING ATTACHMENT UPRIGHTS	1	$12.80	A
6B13-1LR	LEFT REAR WING ATTACHMENT UPRIGHTS	1	$12.80	A
6B13-1RF	RIGHT FORWARDWING ATTACHMENT UPRIGHTS	1	$12.80	A
6B13-1RR	RIGHT REAR WING ATTACHMENT UPRIGHTS	1	$12.80	A
6B14-1	UPRIGHT GUSSET	4	$2.10	A
6B15-1L	LEFT GUSSET	1	$8.05	A
6B15-1R	RIGHT GUSSET	1	$8.05	A
6B15-2L	LEFT ROLLED GUSSET	1	$4.60	A
6B15-2R	RIGHT ROLLED GUSSET	1	$4.60	A
6B15-3	GUSSET	2	$4.00	A
6B15-4L	LEFT FRONT SEAT PANEL	1	$9.10	A
6B15-4R	RIGHT FRONT SEAT PANEL	1	$9.10	A
6B16-1	BAGGAGE FLOOR	1	$31.20	A
6B16-2	CENTER SEAT BACK CHANNEL	1	$13.90	A
6B16-3L	LEFT SEAT BACK SIDE CHANNEL	1	$11.30	A
6B16-3R	RIGHT SEAT BACK SIDE CHANNEL	1	$11.30	A
6B16-4	UPPER FUSELAGE LONGERON DOUBLER	2	$9.60	A
6B16-5	SEAT PANEL ANGLE	1	$12.80	A
6B16-6	UPPER SEAT & BAGGAGE FLOOR SUPPORT	1	$19.40	A
6B17-1	REAR TORQUE TUBE BEARING SUPPORT	1	$15.00	A
6B18-1	ARM REST SIDE	2	$8.20	A
6B18-3	SEAT BELT ATTCHMENT DOUBLER PLATE	2	$5.60	A
6B18-2	ARM REST COVER	1	$12.10	A
6B18-4	SEAT BELT ATTACHMENT	2	$4.00	A
6B18-5	SPAR ACCESS COVER	2	$5.10	A
6B18-6	SEAT BOTTOM	2	$6.00	A
6B20-4	COOL AIR VENT ASSEMBLY	2	$11.10	A
6B21-1	TUBE FRAME	1	$61.40	A
6B21-2	TUBE FRAME	1	$52.80	A
6B21-3	SHOULDER HARNESS FITTING	2	$5.10	A
6B21-4	GUSSET	2	$4.80	A
6B21-5	SADDLE	1	$49.00	A
6B21-6	REAR TOP SKIN	1	$65.80	A
6B21-7	MIDDLE TOP SKIN	1	$65.80	A
6B21-8L	LEFT GUSSET	1	$7.40	A
6B21-8R	RIGHT GUSSET	1	$7.40	A
6-7-SB	SEAT BELTS w/SHOULDER HARNESS	2	$149.50	A
L	STANDARD �L� ANGLE	25	$7.10	A
N66	FAIRLEAD MATERIAL 85x525mm	1	$9.20	A
A4	1/8� RIVETS	3000	$0.08	A
A5	5/32� RIVETS	2000	$0.09	A
