STOL CH 701 WINGS SECTION - Online Kit Store

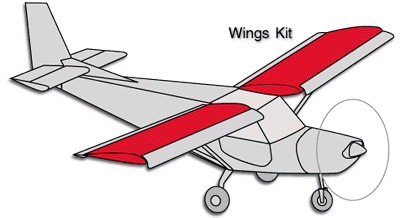

STOL CH 701 ONLINE KIT STORE: WINGS SECTION

Click here for a detailed schematic of the Wing Assemblies.
Click here to quote / order the complete Wing Kit.

The following parts are included in the Wing Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

STOL CH 701 WINGS SECTION
Part Number	Part Description	Req. Qty	Unit Price	Inv. Code
Wing
7V1-1L	LEFT NOSE RIB	6	$31.10	A
7V1-1R	RIGHT NOSE RIB	6	$31.10	A
7V1-2L	LEFT REAR RIB	6	$35.20	A
7V1-2R	RIGHT REAR RIB	6	$35.20	A
7V1-2KL	LEFT WING REAR RIB	1	$35.20	A
7V1-2KR	RIGHT WING REAR RIB	1	$35.20	A
7V1-3A	PITOT TUBE ASSEMBLY	1	$30.90	A
7V2SP	WING SPAR ASSEMBLY	2	$625.00	A
7V2-5	FRONT UPPER STRUT FITTING	2	$9.60	A
7V3-3L	LEFT SPAR TIP	1	$45.96	A
7V3-3R	RIGHT SPAR TIP	1	$45.96	A
7V4-1L	LEFT ROOT NOSE RIB	1	$17.12	A
7V4-1R	RIGHT ROOT NOSE RIB	1	$17.12	A
7V4-2L	LEFT ROOT REAR RIB	1	$19.16	A
7V4-2R	RIGHT ROOT REAR RIB	1	$19.16	A
7V4-3	REAR ROOT DOUBLER	2	$5.20	A
7V4-4	REAR UPPER STRUT FITTING	2	$5.60	A
7V4-5	SLAT SUPPORT	8	$4.73	A
7V4-6	FLAPERON BRACKET	8	$4.45	A
7V4-7	FLAPERON ARM	8	$9.60	A
7V6-1L	LEFT HEAVY REAR CHANNEL	2	$11.10	A
7V6-1R	RIGHT HEAVY REAR CHANNEL	2	$11.10	A
7V6-2SPL	LEFT STD. REAR CHANNEL	5	$11.20	A
7V6-2SPR	RIGHT STD. REAR CHANNEL	5	$11.20	A
7V6-3	REAR RIB ANGLE	1	$10.50	A
7V7-1L	LEFT NOSE SKIN	1	$123.20	A
7V7-1R	RIGHT NOSE SKIN	1	$123.20	A
7V7-2	TOP REAR SKIN	2	$86.00	A
7V7-3	LOWER REAR SKIN	2	$82.00	A
7V7-4	I/B LOWER TRAILING EDGE	2	$28.56	A
7V7-5	O/B LOWER TRAILING EDGE	2	$28.56	A
7V8-1SPL	LEFT FRONT STRUT FITTING DOUBLER	1	$9.25	A
7V8-1SPR	RIGHT FRONT STRUT FITTING DOUBLER	1	$9.25	A
7V8-2	TOP TIP ANGLE	2	$5.36	A
7V8-3	LOWER TIP ANGLE	2	$4.76	A
7V8-4SP	STRUT ANGLE	2	$9.00	A
7V9-1	WING TIP SHEET	2	$27.92	A
7V9-2L	LEFT FIBERGLASS TIP	1	$24.60	A
7V9-2R	RIGHT FIBERGLASS TIP	1	$24.60	A
7V9-3	WING ROOT TOP SKIN	2	$27.00	A
7V9-3A	WING ROOT ANGLE	2	$27.00	A
7V10-1SP	FRONT TOP STRUT	2	$46.10	A
7V10-1A	BOTTOM STRUT	4	$89.00	A
7V10-2SP	REAR TOP STRUT	2	$46.10	A
7V10-3SP	JURY STRUT	8	$0.00	A
7V10-4SP	JURY STRUT ANGLE	8	$4.00	A
7V10-5SP	JURY STRUT BRACKET	2	$6.00	A
7V10-6SP	JURY STRUT BRACKET	2	$6.00	A
7V10-7SP	JURY STRUT CAP	16	$2.50	A
Wing Hardware
AN931-4-7	GROMMET	1	$0.25	A
F487-4	PITOT STATIC POLY TUBE �" OD (16ft)	1	$12.96	A
AN3-4A	BOLT, SL NUT, WASHER	16	$0.70	A
AN3-5A	BOLT, SL NUT, WASHER	4	$0.70	A
AN3-6A	BOLT, SL NUT, WASHER	12	$0.70	A
AN5-6A	BOLT, SL NUT, WASHER	8	$0.75	A
AN3-17A	BOLT, SL NUT, WASHER	4	$0.80	A
AN3-15A	BOLT, SL NUT, WASHER	12	$0.80	A
A4	1/8" RIVET	1500	$0.08	A
A5	5/32" RIVET	100	$0.09	A
AN470A3-3	3/32" SOFT SOLID RIVET	180	$0.04	A
L	L ANGLE	4	$7.10	A
