STOL CH 701 ONLINE KIT STORE: SLATS & FLAPERONS SECTION

Click here for a detailed schematic of the Slats & Flaperons Assemblies.
Click here to quote / order the complete Slats & Flaperons Kit.

The following parts are included in the Slats & Flaperons Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

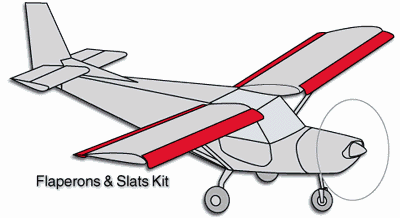

STOL CH 701 SLATS & FLAPERONS SECTION
Part Number	Part Description	Req. Qty	Unit Price	Inv. Code
Slats
7S1-1L	LEFT SLAT RIB	6	$16.10	A
7S1-1R	RIGHT SLAT RIB	6	$16.10	A
7S1-2L	LEFT INBOARD SKIN	2	$51.10	A
7S1-2R	RIGHT INBOARD SKIN	2	$51.10	A
7S1-3L	LEFT OUTBOARD SKIN	2	$68.40	A
7S1-3R	RIGHT OUTBOARD SKIN	2	$68.40	A
7S1-4	I/B TRAILING EDGE	2	$22.80	A
7S1-5	O/B TRAILING EDGE	2	$24.40	A
7S1-6	SUPPORT	8	$5.60	A
7S2-1L	LEFT FIBERGLASS SLAT TIP	2	$24.70	A
7S2-1R	RIGHT FIBERGLASS SLAT TIP	2	$24.70	A
Slats Hardware
L	L ANGLE	5	$7.10	A
A4	1/8" RIVET	600	$0.08	A
AN3-4A	BOLT, SL NUT, WASHER	16	$0.70	A
Flaperons
7A1-1L	LEFT FLAPERON END RIB	2	$14.50	A
7A1-1R	RIGHT FLAPERON END RIB	2	$14.50	A
7A1-1SPL	LEFT FLAPERON ROOT RIB	1	$14.50	A
7A1-1SPR	RIGHT FLAPERON ROOT RIB	1	$14.50	A
7A1-2L	LEFT FLAPERON NOSE RIB	4	$8.40	A
7A1-2R	RIGHT FLAPERON NOSE RIB	4	$8.40	A
7A1-3L	LEFT FLAPERON REAR RIB	10	$8.60	A
7A1-3R	RIGHT FLAPERON REAR RIB	10	$8.60	A
7A1-4	FLAPERON SPAR	4	$28.30	A
7A1-5	HINGE BRACKET	8	$4.10	A
7A2-1LO/B	LEFT OUTBOARD FLAPERON SKIN	1	$52.60	A
7A2-1RO/B	RIGHT OUTBOARD FLAPERON SKIN	1	$52.60	A
7A2-1LI/B	LEFT INBOARD FLAPERON SKIN	1	$52.60	A
7A2-1RI/B	RIGHT INBOARD FLAPERON SKIN	1	$52.60	A
7A2-2	REAR SPLICE PLATE	4	$2.70	A
7A2-3	NOSE SPLICE PLATE	2	$6.90	A
7A2-4	ROOT HINGE PIN	2	$9.88	A
7A2-5	CONTROL HORN	2	$7.80	A
7A2-6L	LEFT FIBERGLASS FLAPERON TIP	1	$16.00	A
7A2-6R	RIGHT FIBERGLASS FLAPERON TIP	1	$16.00	A
Flaperons Hardware
A4	1/8" RIVET	600	$0.08	A
AN470A3-3	3/32" SOFT SOLID RIVET	180	$0.04	A
S.25x.028	3/16" I.D. 4130 STEEL	8	$0.00	A
AN960-416	3/16" I.D. WASHER	16	$0.03	A
AN3-6A	BOLT, SL NUT, WASHER	8	$0.70	A
AN380-2-2	COTTER PIN	8	$0.04	A
AN3-3A	BOLT, SL NUT, WASHER	2	$0.70	A

� Zenith Aircraft Co. 13 Apr 2015
