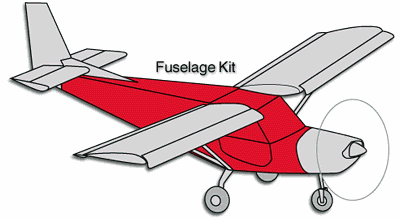

STOL CH 701 ONLINE KIT STORE: FUSELAGE SECTION

Click here for a detailed schematic of the Fuselage Assemblies.
Click here to quote / order the complete Fuselage Kit.

The following parts are included in the Fuselage Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

STOL CH 701 FUSELAGE SECTION
Part Number	Part Description	Req. Qty	Unit Price	Inv. Code
Rear Fuselage
7F1-1	FIREWALL	1	$82.10	A
7F1-2	INSTRUMENT PANEL	1	$52.40	A
7F1-3	REAR H.T. FRAME	1	$21.60	A
7F1-4	FRONT H.T. FRAME	1	$23.20	A
7F2-1	TOP SKIN REAR FUSELAGE	1	$96.00	A
7F2-2	SIDE SKINS REAR FUSELAGE	2	$84.00	A
7F2-3	BOTTOM SKIN	1	$91.00	A
7F2-4	REAR ACCESS COVER	1	$25.92	A
7F3-1	REAR FUSELAGE LONGERON)	8	$24.20	A
7F3-2L	LEFT BOTTOM LONGERON DOUBLER	1	$11.00	A
7F3-2R	RIGHT BOTTOM LONGERON DOUBLER	1	$11.00	A
7F3-2A	CORNER GUSSET	10	$0.00	A
7F3-3SP	TOP LONGERON GUSSET	2	$15.10	A
7F3-4	HORIZONTAL TAIL ATTACHMENT	4	$4.80	A
7F4-1	UPPER RUDDER HINGE PLATE	1	$5.60	A
7F4-2	LOWER RUDDER HINGE PLATE	2	$4.80	A
7F4-3	REAR TIE DOWN	2	$3.50	A
7F4-4	TOP SKIN DOUBLER	1	$7.90	A
7F5-1SP	REAR WING ATTACHMENT	2	$10.00	A
7F5-2SP	SIDE CHANNEL	2	$18.00	A
7F5-3SP	TOP CHANNEL	1	$31.80	A
7F5-4	UPRIGHT	2	$17.00	A
7F5-5L	LEFT SHOULDER HARNESS ATTACHMENT	1	$6.00	A
7F5-5R	RIGHT SHOULDER HARNESS ATTACHMENT	1	$6.00	A
7F5-6L	LEFT TAPERED CHANNEL	1	$12.10	A
7F5-6R	RIGHT TAPERED CHANNEL	1	$12.10	A
7F5-7	BAGGAGE FLOOR	1	$29.84	A
7F5-8B	BAGGAGE BACK	1	$30.08	A
7F6-1	BOTTOM CHANNEL	1	$17.00	A
7F6-2	REAR TORQUE TUBE BEARING	1	$5.90	A
7F6-3	FLAP CONTROL BEARING	2	$3.90	A
7F6-4	SEAT BACK	1	$12.50	A
7F6-5	SEAT BACK CHANNEL	1	$17.00	A
Rear Fuselage Hardware
L	L ANGLE	25	$7.10	A
Z	Z ANGLE	3	$14.40	A
AN3-4A	BOLT, WASHER, NUT	4	$0.70	A
AN5-5A	BOLT, WASHER, NUT	4	$0.75	A
AN525-10R7	SCREWS	12	$0.45	A
MS21075-L3	NUT PLATE	12	$0.45	A
A3	3/32" RIVET	24	$0.08	A
A4	1/8" RIVET	1000	$0.08	A
A5	5/32" RIVET	400	$0.09	A
Forward Fuselage
7F7-1SP	UPPER CHANNEL	1	$26.00	A
7F7-2C	LOWER VERTICAL CHANNEL	1	$18.10	A
7F7-3	VERTICAL TOP CHANNEL	1	$11.90	A
7F7-4C	UPPER & LOWER BEARING	2	$49.40	A
7F7-5	FIREWALL STIFFENERS	2	$14.00	A
7F7-6C	BUNGEE PIN	1	$4.00	A
7F7-7SP	TOP CHANNEL STIFFENER	1	$8.50	A
7F7-8C	CHANNEL DOUBLER	2	$2.80	A
7F7-9CL	LEFT GEAR GUSSET	1	$5.90	A
7F7-9CR	RIGHT GEAR GUSSET	1	$5.90	A
7F8-1	CENTRAL FLOOR STIFFENER	1	$28.10	A
7F8-2	FRONT FLOOR STIFFENER	1	$19.20	A
7F8-3	REAR FLOOR STIFFENER	1	$19.60	A
7F8-4	REAR LOWER BEARING	1	$14.80	A
7F8-5	FRONT LOWER BEARING	1	$5.90	A
7F8-6L	LEFT NOSE GEAR STOP	1	$3.40	A
7F8-6R	RIGHT NOSE GEAR STOP	1	$3.40	A
7F8-7	FLOOR	1	$34.10	A
7F8-8	BOTTOM	1	$13.90	A
7F8-9B	EXTENDED BAGGAGE PANEL	1	$36.10	A
7F8-10B	ZEE CHANNEL	1	$17.10	A
7F9SPL	LEFT CABIN SIDE ASSEMBLY	1	$198.00	A
7F9SPR	RIGHT CABIN SIDE ASSEMBLY	1	$198.00	A
7F10-1	BOTTOM CHANNEL	1	$33.60	A
7F10-2	CHANNEL DOUBLER	4	$3.50	A
7F10-3	FRONT BOTTOM LONGERON	2	$16.40	A
7F11-1	SEAT FRONT	1	$41.36	A
7F11-1A	SEAT FRONT DOUBLER	2	$4.50	A
7F11-2	FRONT BEARING TOP	1	$4.72	A
7F11-3	FRONT BEARING BOTTOM	1	$4.00	A
7F11-4	TUNNEL	1	$16.10	A
7F11-4A	TUNNEL ANGLE	2	$7.40	A
7F11-5	UPRIGHT	2	$5.96	A
7F11-6	UPRIGHT DOUBLER	2	$4.90	A
7F11-7	GUSSET	1	$10.24	A
7F11-8	REINFORCEMENT PLATE	1	$6.00	A
7F12-1	UPPER TUBE	2	$7.20	A
7F12-2	DIAGONAL	1	$9.10	A
7F12-3	DIAGONAL STIFFENER	1	$8.90	A
7F12-4	GUSSET	2	$1.40	A
7F13-1	GUSSET	2	$3.90	A
7F14-1	LOWER DZUS PLATE	2	$6.16	A
7F14-2	INSTRUMENT PANEL TOP COVER PLATE	1	$2.90	A
7F14-3	FRONT SIDE SKIN	2	$17.64	A
7F14-4	FRONT TOP SKIN	1	$26.20	A
7F14-5R	STEEL ANGLE	2	$11.90	A
7F14-6R	ALUM. PLATE	2	$6.00	A
7F15-1	PANEL BOTTOM CHANNEL	1	$17.90	A
7F15-2	PANEL SIDE GUSSET	2	$3.90	A
7F15-DH	DOOR HANDLE ASSEMBLY	2	$85.35	A
7F15-3DL	LEFT STRIKER PLATE	1	$8.00	A
7F15-3DR	RIGHT STRIKER PLATE	1	$8.00	A
7F15-4DL	LEFT INTERIOR HANDLE/LATCH w/ Bushing	1	$23.40	A
7F15-4DR	RIGHT INTERIOR HANDLE/LATCH w/ Bushing	1	$23.40	A
1226A62L	LEFT EXTERIOR DOOR HANDLE	1	$20.15	A
1226A62R	RIGHT EXTERIOR DOOR HANDLE	1	$20.15	A
7F19-10D	PLASTIC DOOR CLASP	2	$26.00	A
7F19-14D	DOOR RETAINER ASSEMBLY	2	$7.80	A
7F16-1	SEAT PANEL	2	$13.60	A
7F16-2L	LEFT LATERAL SEATBELT ATTACHMENT	1	$6.90	A
7F16-2R	RIGHT LATERAL SEATBELT ATTACHMENT	1	$6.90	A
7F16-3	CENTRAL SEATBELT ATTACHMENT	2	$4.00	A
7F16-3A	CENTRAL SEAT BELT DOUBLER	2	$4.20	A
7F16-4	DOUBLER STRIP	2	$3.90	A
7F17-1SPL	LEFT GEAR/STRUT FITTING	1	$127.00	A
7F17-1SPR	RIGHT GEAR/STRUT FITTING	1	$127.00	A
7F18-1SP	CABIN FRAME	1	$275.10	A
7F19-1A	POLY WINDSHIELD	1	$41.00	A
7F19-1	LEXAN TOP TINTED WINDOW	1	$65.20	A
7F19-2	DOOR FRAME	2	$46.00	A
7F19-3	UPPER TUBE	2	$6.90	A
7F19-4	CENTRAL TUBE	2	$12.10	A
7F19-5	SHORT TUBE	2	$4.00	A
7F19-6	DOOR GUSSET (SHEET FOR 16)	1	$3.20	A
7F19-7D	DOOR SIDE	2	$15.90	A
7F19-8M	SIDE WINDSHIELD TRIM	2	$8.50	A
7F19-9M	TOP WINDSHIELD TRIM	1	$8.50	A
7F19-11M	PLEXIGLASS FORMED WINDSHIELD	1	$355.00	A
7F19-12D	DOOR SILL	2	$14.00	A
7F19-13D	DOOR PIANO HINGE	2	$9.10	A
Forward Fuselage Hardware
SNW-2012	FINISHING WASHER	27	$0.17	A
SNST18-P	TRUSS HEAD SCREW	18	$0.12	A
10Rx3/4 OHA	TOP WINDSHIELD SCREW	9	$0.25	A
A4	1/8" RIVET	1000	$0.08	A
A5	5/32" RIVET	700	$0.09	A
AN3-5A	BOLT, SL NUT, WASHER	6	$0.70	A
AN3-6A	BOLT, SL NUT, WASHER	6	$0.70	A
AN3-4A	BOLT, SL NUT, WASHER	24	$0.70	A
AN3-10A	BOLT, SL NUT, WASHER	4	$0.75	A
AN380-3-4	COTTER PIN	2	$0.06	A
AN5-5A	BOLT, SL NUT, WASHER	4	$0.75	A
AN5-6A	BOLT, SL NUT, WASHER	2	$0.75	A
AN931-4-7	GROMMET	3	$0.25	A
AN931-8-13	GROMMET	3	$0.45	A
Z	STANDARD Z ANGLE	3	$14.40	A
L	STANDARD L ANGLE	3	$7.10	A
