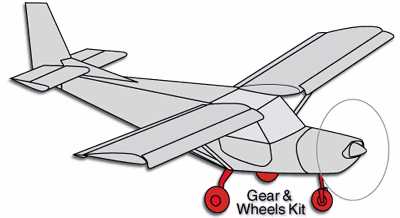

STOL CH 701 ONLINE KIT STORE: LANDING GEAR SECTION

  • Click here for a detailed schematic of the Landing Gear Assemblies.

  • Click here to quote / order the complete Landing Gear Kit.

The following parts are included in the Landing Gear Kit.  Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

STOL CH 701 LANDING GEAR SECTION
Part Number Part Description Req. Qty Unit Price Inv. Code
Main Gear
7L2-1JTUNDRA MAIN GEAR SPRING

1

$505.70A
7L2-2JGEAR PLATES4$4.50A
7L2-2ARUBBER SPACER

4

$6.25A
T8X66x800 TIRE

2

$68.98A
AXLE-7MAIN WHEEL AXLE, COTTER PIN, THRUST WASHER, CASTELLATED NUT

2

$61.50A
CUSAAU-40DMATCO WHEEL SET w/SP. CALIPERS, w/TUBELESS TIRES

1

$1,135.47A
Main Gear Hardware
F468-4A1/8" NPT MALE CONNECTOR (STRAIGHT)2$3.10A
F469-4A90 DEGREE MALE CONN.2$2.86A
MC-5MASTER CYLINDER

2

$99.50A
F487-41/4" POLY TUBE (17ft)1$20.40A
AN426AD5-16SOLID RIVET4$0.10A
AN4-13ABOLT, SL NUT, WASHER8$0.75A
Nose Gear
1080FRONT NOSE GEAR BUNGEE1$20.95A
7L2-3JNOSE WHEEL FORK DOUBLER1$52.50A
7L2-4JNOSE WHEEL FORK1$52.50A
MH6NNOSE WHEEL RIM1$71.90A
T8X66x800 TIRE1$68.98A
TU800x6/7Tundra Tube1$33.30A
7L1-1JNOSE GEAR STRUT ASSEMBLY1$194.00A
7L1-2JLLEFT STEERING ROD1$14.72A
7L1-2JrRIGHT STEERING ROD1$14.72A
7L1-3J w/7L1-4JNOSE WHEEL AXLE w/Spacers1$54.50A
7L1-5JSTOP PLATE1$4.00A
Nose Gear Hardware
AN3H-4ABOLT, SL NUT, WASHER2$0.70A
AN4-6ABOLT, SL NUT, WASHER4$0.75A
AN5H-5ABOLT, SL NUT, WASHER2$0.85A
AN310-5BOLT, CASTLE NUT, WASHER2$0.68A
AN380-2-2COTTER PIN2$0.04A
CW5-12ROD END2$8.00A
AN316-5RJAM NUT2$0.29A
AN4-7ABOLT, SL NUT, WASHER4$0.70A
AN4-10ABOLT, SL NUT, WASHER4$0.75A
AN960-516STEEL WASHER10$0.04A
AN365-524SL NUT2$0.45A
