ZODIAC CH 650: Rudder Tail Section

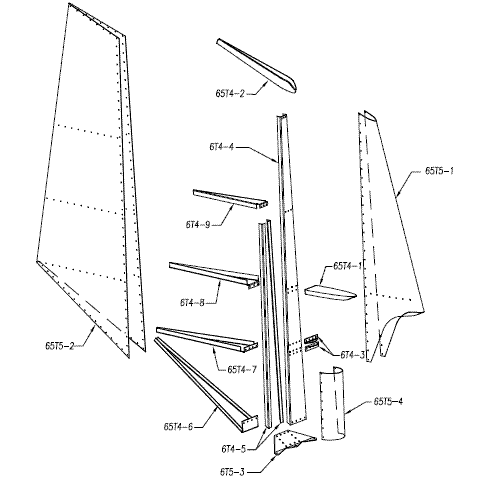

ZODIAC CH 650 - Rudder Assembly

  ZODIAC 650 Rudder Kit (part of the complete tail kit)
  • Click here to quote/order the complete Rudder Starter Kit.
  • Click here to quote/order other component kits.
  • Click here for details about building the Rudder at a Factory Workshop.

The following parts are included in the complete Rudder Kit.  Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

ZODIAC CH 650 - Rudder Parts:
Part Number Part Description (click for illustration) Required Quantity Unit Price Inv. Code
65T4-1 NOSE RIB 1 $30.90 A
65T4-2 TIP RIB 1 $48.10 A
6T4-3 UPPER BEARING 2 $3.20 A
6T4-4 VERTICAL TAIL SPAR 1 $46.40 A
6T4-5 DOUBLER ANGLE 2 $14.40 A
65T4-6 REAR RIB #1 1 $20.50 A
65T4-7 REAR RIB #2 1 $12.50 A
6T4-8 REAR RIB #3 1 $9.60 A
6T4-9 REAR RIB #4 1 $9.70 A
65T5-1 LEADING EDGE SKIN 1 $58.50 A
65T5-2 TAILING EDGE SKIN 1 $100.80 A
6T5-3 VERTICAL TAIL HORN 1 $11.20 A
65T5-4 FAIRING 1 $9.10 A
6T5-5 RUDDER TIP ANGLE 1 $2.60 A
ZODIAC CH 650 - Rudder Hardware:
A4 1/8" BLIND RIVETS 300 $0.08 A
A5 5/32" BLIND RIVETS 20 $0.09 A
