ZODIAC CH 650: CANOPY

ZODIAC CH 650 Canopy Kit and Parts

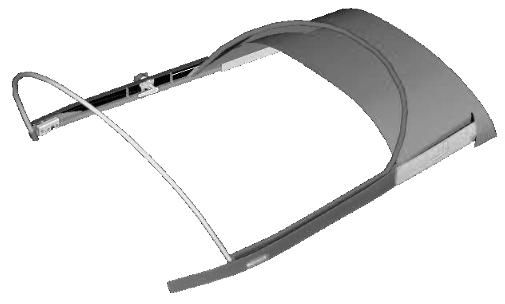

Illustrated Parts Catalog: Forward-Hinge Canopy Frame
Click here for ZODIAC CH 650 design info.

The following parts are included in the Finishing Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

ZODIAC CH 650 - CANOPY PARTS:
Part Number	Part Description (click for illustration)	Required Quantity	Unit Price	Inv.Code
65C1-1L	LEFT PANEL SIDE ANGLE	1	$17.60	A
65C1-1R	RIGHT PANEL SIDE ANGLE	1	$17.60	A
65C1-4	FORWARD TOP SKIN	1	$55.00	A
65C2-2	BOTTOM BRACKET WELDED ASSEMBLY	2	$18.00	A
65C2-3L	LEFT CANOPY SIDE FRAME WELDED ASSEMBLY	1	$197.50	A
65C2-3R	RIGHT CANOPY SIDE FRAME WELDED ASSEMBLY	1	$197.50	A
65C3-1	REAR CANOPY FRAME	2	$61.40	A
6C3-2	FRONT CANOPY FRAME	1	$61.40	A
65C3-3 & 65C3-4	COMPLETE CANOPY BUBBLE	1	$750.00	A
6C3-6	SIDE COVER	2	$15.50	A
65C3-7L	LEFT REAR CANOPY GUSSET	1	$12.50	A
65C3-7R	RIGHT REAR CANOPY GUSSET	1	$12.50	A
6C3-8	EXTRUSION HANDLE	2	$4.00	A
65C3-9	REAR CANOPY SKIN	2	$16.00	A
65C3-10	ROLL BAR WELDED ASSEMBLY	1	$120.00	A
65C3-11	FRONT CANOPY STRIP	2	$9.50	A
65C3-12L	LEFT FRONT CANOPY GUSSET	1	$8.00	A
65C3-12R	RIGHT FRONT CANOPY GUSSET	1	$8.00	A
65C3-13L	LEFT FRONT CANOPY BRACKET	1	$6.25	A
65C3-13R	RIGHT FRONT CANOPY BRACKET	1	$6.25	A
65C4-1L & 65C4-2L	LEFT CANOPY LATCH W/ EXTRUSION LATCH HINGE	1	$48.50	A
65C4-1R & 65C4-2L	RIGHT CANOPY LATCH W/ EXTRUSION LATCH HINGE	1	$48.50	A
65C4-3	ROD BEARING (RIGHT SIDE)	1	$16.50	A
65C4-4	ROD BEARING (LEFT SIDE)	1	$16.50	A
65C5-1	MIDDLE CANOPY LOCK TUBE	1	$47.50	A
65C5-2	OUTBOARD TUBE (RIGHT SIDE)	1	$18.00	A
65C5-3	OUTBOARD TUBE (PILOT SIDE)	1	$29.00	A
65C5-4	ARM	2	$5.00	A
65C5-5	HANDLE	1	$20.15	A
9416K12	GAS SPRING	2	$15.60	A
9416K84	EYELET	4	$1.90	A
25-0700	CABLE STOP ADJUSTER w/SLEEVE ASSEMBLY	2	$3.75	A
TA-897	RUBBER TRIM (11ft)	1	$23.10	A
1/16 NYLON	1/16� NYLON 66 SHEET	2	$6.80	A
AN3-5A	BOLT, WASHER, NUT	2	$0.70	A
AN3-4A	BOLT, WASHER, NUT	10	$0.70	A
AN380-2-2	COTTER PIN	4	$0.04	A
AN960-516	WASHER	10	$0.08	A
NAS548P6-10	#6 SCREWS 5/8 Philip Flathead Type B	65	$0.20	A
A3236-012-24A	632 COUNTERSUNK WASHER	65	$0.20	A
AN4-14A	BOLT, NUT, WASHER	2	$0.00	A
A4	1/8� RIVETS	100	$0.08	A
