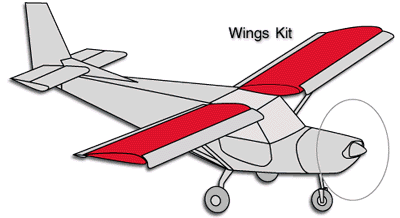

STOL CH 750 ONLINE KIT STORE: WINGS SECTION

  • Click here for a detailed schematic of the Wing Assemblies.

  • Click here to quote / order the complete Wing Kit.

NOTE: Current Individual Parts Pricing in the online parts database currently only reflects old pricing (2017 and earlier). Online orders will be updated to current 2018 prices. Call for details.

The following parts are included in the Wing Kit.  Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

STOL CH 750 WINGS SECTION
Part Number Part Description Req. Qty Unit Price Inv. Code
Wing
75W1-1SBL/0 Left Nose Rib (w/ holes for Slat Bracket) 4 $64.41 A
75W1-1SBR/0 Right Nose Rib (w/ holes for Slat Bracket) 4 $64.41 A
75W1-1L/0 Left Nose Rib 2 $57.19 A
75W1-1R/0 Right Nose Rib 2 $57.19 A
75W1-2KL/0 Left Wing Tank Rear Rib 1 $60.80 A
75W1-2KR/0 Right Wing Tank Rear Rib 1 $60.80 A
75W1-2L/0 Left Rear Rib 2 $60.80 A
75W1-2R/0 Right Rear Rib 2 $60.80 A
75W1-2FBL/0 Left Rear Rib (w/ holes for Flaperon Bracket) 3 $68.03 A
75W1-2FBR/0 Right Rear Rib (w/ holes for Flaperon Bracket) 3 $68.03 A
75W2L/1 Left Wing Spar Assembly 1 $2,167.20 A
75W2R/1 Right Wing Spar Assembly 1 $2,167.20 A
75W3-2L/3 Left Spar Tip 1 $23.78 A
75W3-2R/3 Right Spar Tip 1 $23.78 A
75W3-3/0 Rear Upper Strut Fitting 2 $15.17 A
75W3-4/4 Rear Root Doubler 2 $17.34 A
75W3-5/0 Flaperon Arm 8 $35.52 A
75W3-6/0 Slat Support 8 $11.92 A
75W4-1L/0 Left Root Nose Rib 1 $20.71 A
75W4-1R/0 Right Root Nose Rib 1 $20.71 A
75W4-2L/1 Left Root Rear Rib 1 $48.88 A
75W4-2R/1 Right Root Rear Rib 1 $48.88 A
75W4-3/0 Root Rib Doubler 2 $4.40 A
75W4-4L/2 Left I/B Rear Channel 1 $107.76 A
75W4-4R/2 Right I/B Rear Channel 1 $107.76 A
75W4-5L/1 Left O/B Rear Channel 1 $102.94 A
75W4-5R/1 Right O/B Rear Channel 1 $102.94 A
75W4-6L/0 Left Rear Channel Doubler 1 $14.45 A
75W4-6R/0 Right Rear Channel Doubler 1 $14.45 A
75W4-7/0 I/B Rear Channel Doubler 2 $14.45 A
75W5-1/2 I/B Nose Skin 2 $149.90 A
75W5-2/1 O/B Nose Skin 2 $78.86 A
75W5-3/0 I/B Top Skin 2 $66.22 A
75W5-4/1 O/B Top Skin 2 $198.66 A
75W5-5/1 Wing Root Top Skin 2 $60.80 A
75W5-6/0 Root Nose Skin 2 $34.31 A
75W6-1/3 I/B Bottom Skin 2 $199.26 A
75W6-2/1 O/B Bottom Skin 2 $55.99 A
75W6-3L/1 Left I/B Trailing Edge Skin 1 $90.54 A
75W6-3R/1 Right I/B Trailing Edge Skin 1 $90.54 A
75W6-4L/0 Left O/B Trailing Edge Skin 1 $87.05 A
75W6-4R/0 Right O/B Trailing Edge Skin 1 $87.05 A
75W6-5/0 Wing Root Angle 2 $9.63 A
75W6-6/0 Fuel Access Cover 2 $10.84 A
75W6-7/0 Tie Down Ring 2 $12.04 A
75W6-8L/0 Left Wing Tip 1 $112.45 A
75W6-8R/0 Right Wing Tip 1 $112.45 A
75W6-9/0 Pitot/Static Tube 1 $73.44 A
75W7-1L/2 Left Front Strut Fitting Doubler 1 $15.95 A
75W7-1R/2 Right Front Strut Fitting Doubler 1 $15.95 A
75W7-8/0 Strut Angle 2 $10.84 A
Wing Hardware
L L Angle 1FT $1.78 A
AN3-5A 3/16" Bolt 4 $0.70 A
AN3-4A 3/16" Bolt 2 $0.75 A
AN365-1032 3/16" Nylon S.L. Nut 4 $0.18 A
AN960-10 3/16" ID Washer 4 $0.04 A
AN4-5A 1/4" Bolt 2 $0.76 A
AN365-428 1/4" Nylon S.L. Nut 2 $0.12 A
AN960-416 1/4" ID Washer 2 $0.06 A
AN525-10R7 Machine Screw 20 $0.25 A
MS21047L3 10-32 Nut Plate 20 $0.45 A
A3 3/32" Domed Blind Rivet 42 $0.08 A
A4 1/8" Countersunk Blind Rivet 1320 $0.08 A
A5 5/32" Countersunk Blind Rivet 730 $0.09 A
A6 3/16" Rivet 4 $0.20 A
F487-4 1/4" O/D POLY TUBE 1FT $1.07 A
AN931-4-7 3/16" ID Grommet 2 $0.25 A
S-1411 CABLE TIE 4" 12 $0.22 A

© Zenith Aircraft Co.   20 Feb 2018
