STOL CH 750 Light Sport Utility Airplane


(Zenith CH 750 CRUZER specific information coming soon)

NEW  Dynon SkyView 10-inch glass panel with new power panel:

STOL CH 750 custom instrument panel kit

Zenith Aircraft Company supplies complete instrument panels and avionics kits to help builders complete their own custom instrument panels, using the most modern available avionics.  [View video clip]

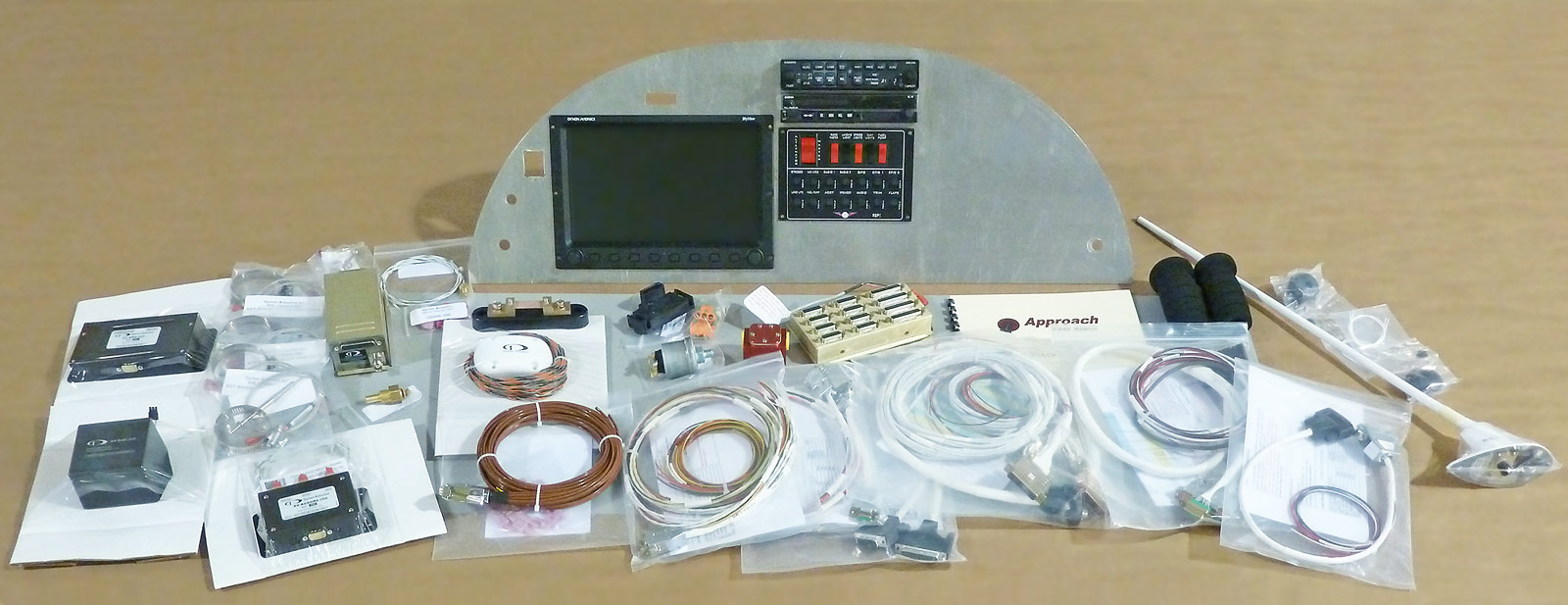

The complete Instruments / Avionics Package for the STOL CH 750 includes the following:
  • PRE-CUT INSTRUMENT PANEL
  • NIMBUS PANEL COVERING  (GREY)
  • DYNON SKYVIEW 10-inch DISPLAY
  • GARMIN SL 40 COM RADIO
  • GARMIN GMA 240 Audio Panel
  • RSP-1 POWER PANEL
  • APPROACH WIRE HARNESS
  • SV-XPONDR-262 SKYVIEW
    MODE S INTEGRATED TRANSPONDER
  • RAC STICK GRIPS G101
  • FUEL FLOW TRANSDUCER
  • INTERNAL LI-ION BACKUP BATTERY
  • OUTSIDE AIR TEMP (OAT) PROBE
  • COM ANTENNA AV-10
  • TRANSPONDER ANTENNA
  • ANTENNA WIRE AND BNC CONNECTOR
  • ENGINE PROBE (CHT AND EGT SENSOR)
    (Equipment and details subject to change)

Below: Instrument Panel, as equipped on the STOL CH 750 prototype factory demonstrator aircraft (for the Continental O-200 engine).
  Dynon FlightDEK D180 Audio Panel Comm Radio GPS Elevator Trim Power Panel Flap Switch Key Ignition Key Ignition Key Ignition Cabin Heat 12V Xpondr aux. in Plug-In STOL CH 750 Instrument Panel STOL CH 750 Panel

Move your mouse pointer over the panel for description...



NEW: Video Tour of the Instrument Panel (as equipped above)  |  Video of Instruments / Avionics Kit  |  Sample Instrument Panel Layouts (template)

Zenith Aircraft Company supplies complete instrument panels and avionics kits to help builders complete their own custom instrument panels:
 Let us know what your custom avionics needs are... whether you need a single instrument or a full custom panel.
Instruments / Avionics Kit from Zenith Aircraft Company       Instruments / Avionics Kit from Zenith Aircraft Company       Custom Power Panel
